Interfit Flat Panel Lifts
Market Segments
With a slim-line design and fail-safe mechanism to protect the user and an integrated door opening solution, the Interfit Flat Panel Lift provides a simple, modular approach to what was once a complicated installation.
Ultra safe design, as the mechanism is not driven downwards, thus preventing any potential crush injuries.
Keep your flat panel screen safe, secure and out of sight when not in use.
SIZES TO ACCOMMODATE PANELS: 32” - 55”

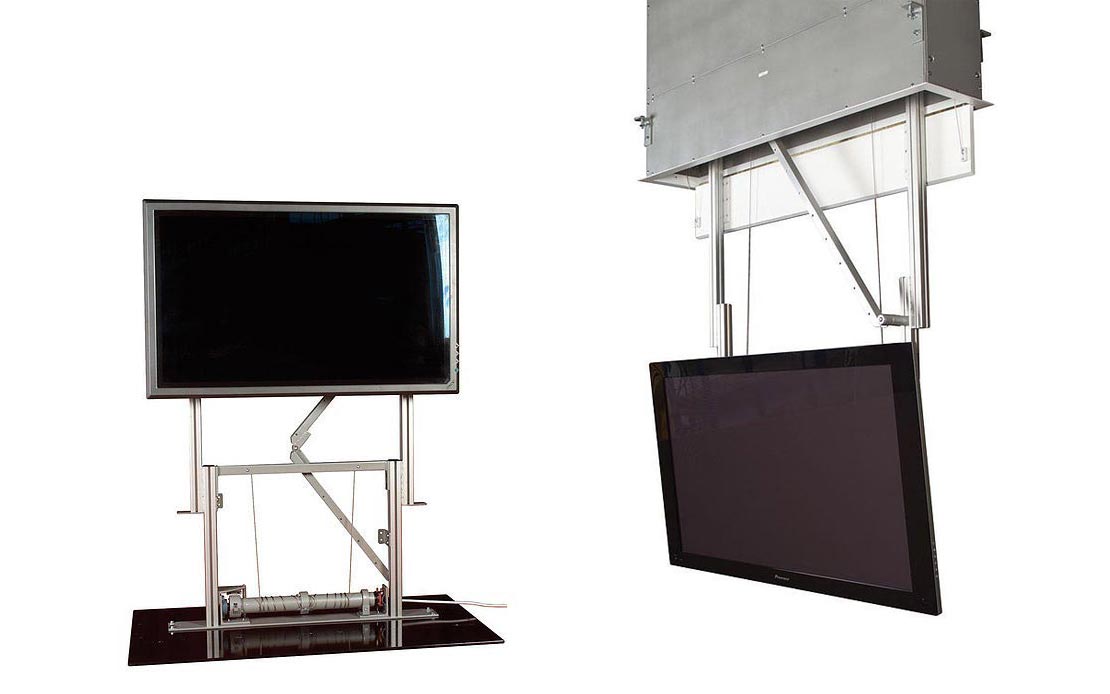

A contemporary solution to audio-visual storage, the Interfit Vertical Up and Vertical Down lifts are designed to raise and lower your flat panel screen from custom built cabinetry using a structurally rigid lineal bearing system to make your plasma screen safe, secure and out of sight when not in use.
Vertical Up benefits:
- Integrated door opening solution
- Low line design
- Simple, single trade installation
- Adjustable travel
- Fall-arrestor system
Vertical Down Benefits
- Integrated door opening solution with ceiling edge cover strips, mechanics, cover blind
- Fall-arrestor system

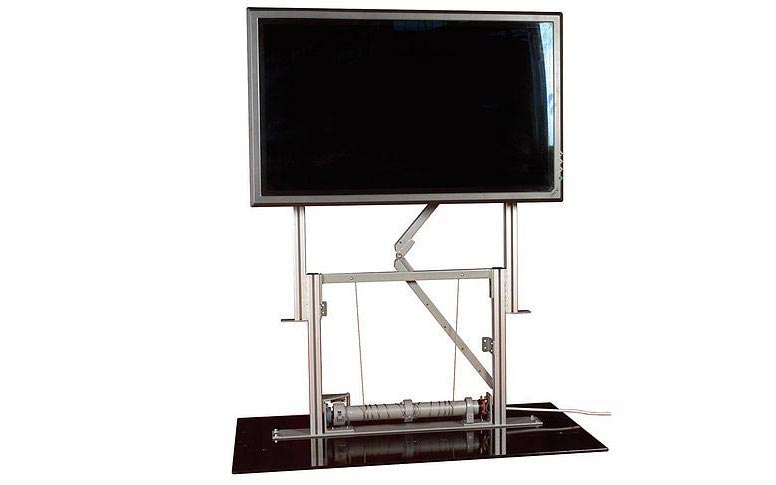

Interfit Flat Panel Vertical Up
-
Description
Floor mounted vertical lifting devices for flat panel monitors -
Construction
Powder coated aluminium frame and mechanism - utilising lineal bearing arms for lift -
Features
Designed to raise and lower your panel from floor based cabinetry
Integrated door opening solution
Low cabinet requirements
Fall arrestor system

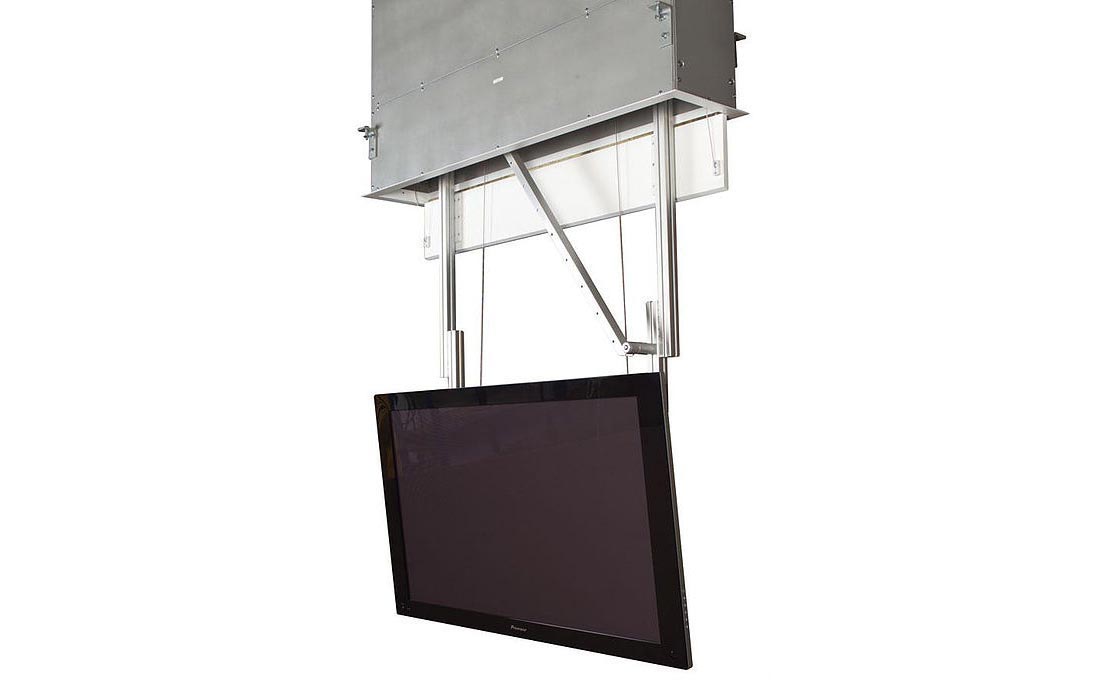

Interfit Flat Panel Vertical Down
-
Description
Ceiling mounted vertical lifting devices for flat panel monitors -
Construction
Powder coated aluminium frame and mechanism - utilising lineal bearing arms for lift -
Features
Designed to raise and lower your panel from the ceiling
Integrated door opening solution with ceiling edge cover strips
Mechanism cover blind
Fall arrestor system
-
Specifications
Interfit Flat Panel Lift - Vertical Up
MODEL NUMBER PANEL LIFT CAPACITY WEIGHT WIDTH DEPTH HEIGHT (approx) (kg) (mm) (mm) (mm) 1461000 32"-37" 25kg 18 830 100 600-1570 1461150 40"-42" 30kg 20 930 100 600-1470 1461300 42"-50" 35kg 25 1040 100 680-1710 1461450 50"-55" 40kg 30 1230 100 780-2005
Interfit Flat Panel Lift - Vertical Down
ITEM NO UNIT DIMENSIONS MAX PANEL DIMENSIONS TRAVEL PANEL SIZE GUIDE (ONLY) WEIGHT LIFTING CAPACITY C G A D B F E (kg) (kg) 1471000 1110 350 960 1000 145 652 1140 32'' to 37'' Diagonal 65 25 1471150 1260 350 960 1150 145 760 1350 40'' to 42'' Diagonal 75 30 1471300 1410 350 1060 1300 145 860 1500 42'' to 50'' Diagonal 85 35 1471450 1560 350 1100 1450 145 900 1500 50'' to 55'' Diagonal 95 40 1471600 1710 350 1200 1600 145 1000 1500 55'' plus Diagonal 105 45 -
