Check out our full range of Connect Control accessories to further enhance your Screen Technics products.

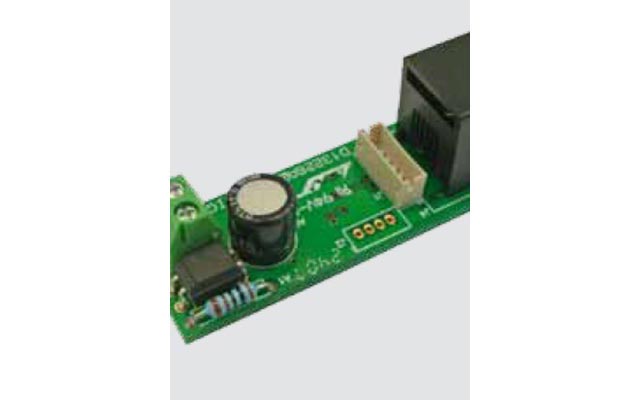

Connect 12V Trigger Relay Kit
Part No. 6500500
This item (when plugged into the RJ12 left-hand port of the Connect Control Module) switches the device when low voltage current is applied (5v to 24v) from a projector or AV receiver low volt trigger output, and the screen rolls.

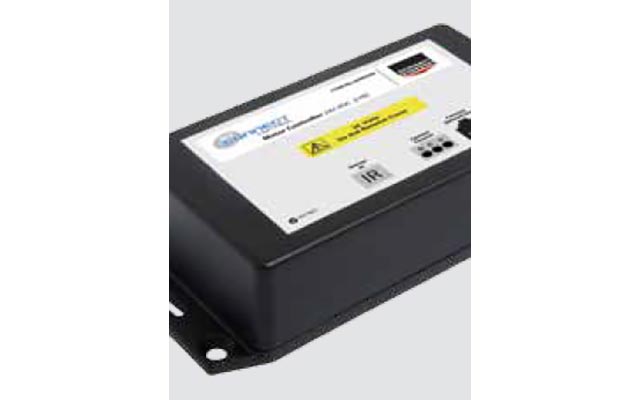

Connect 24V Motor Control Module
Part No. 6500200
A standard feature with all 141020AZ, 141020AW, 141024BW and 141024BX InterFit AV Lifters with fixed travel. This motor controller is available as a standalone unit to offer control over 24 VDC 50 Hz motors. In basic configuration it allows impulse wall switch and dry contact closure for an overriding building management system, plus can be daisy chain linked to another Connect Module for single switch control of multiple devices (up to nine modules in total).

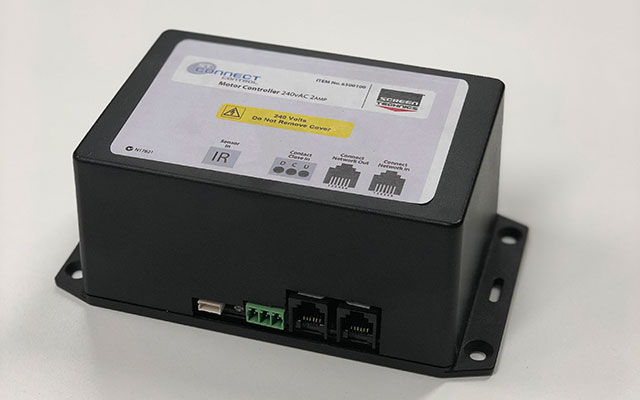

Connect 240V Motor Control Module
Part No. 6500100
A standard feature with all ElectriCinema Screens and all InterFit AV Lifters, this motor controller is available as a standalone unit to offer control over 240v 4 core products. In basic configuration it allows impulse wall switch and dry contact closure for an overriding building management system, plus can be daisy chain linked to another Connect Module for single switch control of multiple devices (up to 9 modules in total).

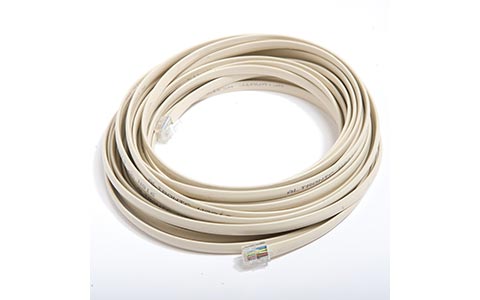

Connect Daisy Chain Link Cables RJ12 / 6 Core Flat
Part No. 6500104
These cables come in 10 metre lengths and allow you to daisy chain link two or more Connect Modules and allow them to communicate for multiple switching options. The operation is left-hand port in and right-hand port out to the next module, in a line of up to nine Connect Modules.
Connect IR Sensor
Part No. 6500102 - 300 mm - 2000mm
Plugs into a Connect Control Module and should be used in conjunction with the Connect IR Transmitter item no. 6500101.

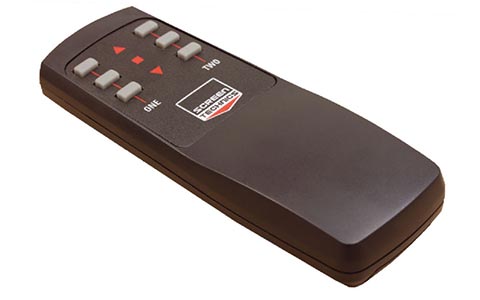

Connect IR Transmitter
Part No. 6500101
Spare handheld transmitter suitable for the Connect Control Module - 4 channels. Must be used in conjunction with Connect IR Sensor item no. 6500102.
NOTE: Supplied with every ElectriCinema and InterFit AV lifting device.

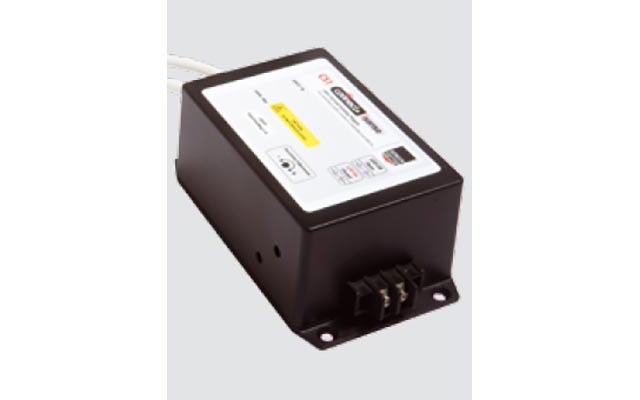

Connect iSense Current Sensing Trigger
Part No. 6500400
Designed to function with a Connect Motor Control Module. Simply plug the trigger between the power point and the device it is sensing. When 240v power is detected a dry contact is closed allowing up/down control of iConnect devices.
NOTE: Due to the wide variety of projector designs, we can’t guarantee that this product will work in all applications.
Two-Button Impulse Wall Switch
Part No. 3500998
Suitable for use with any Connect controlled product, including the ElectriCinema and InterFit Lifter ranges. This wall switch runs off the impulse contact closure and allows simple up and down control.
