Motorised Swing Arm

  • Motorised Swing Arm 001

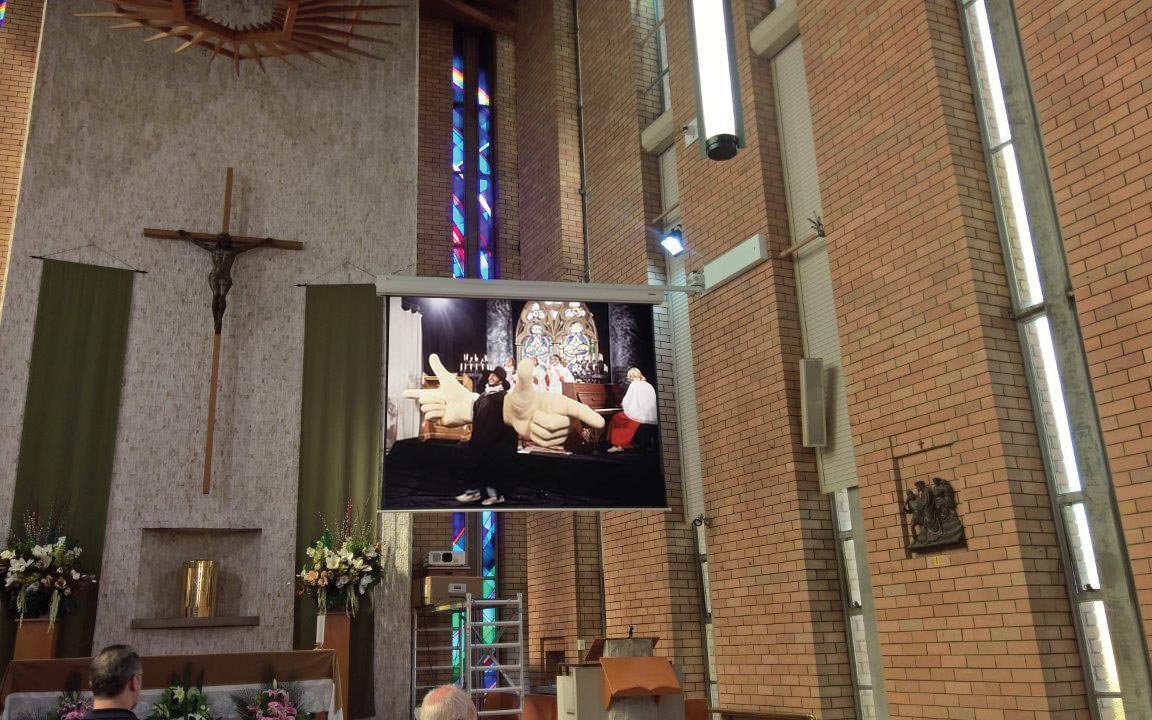

  • Motorised Swing Arm 002

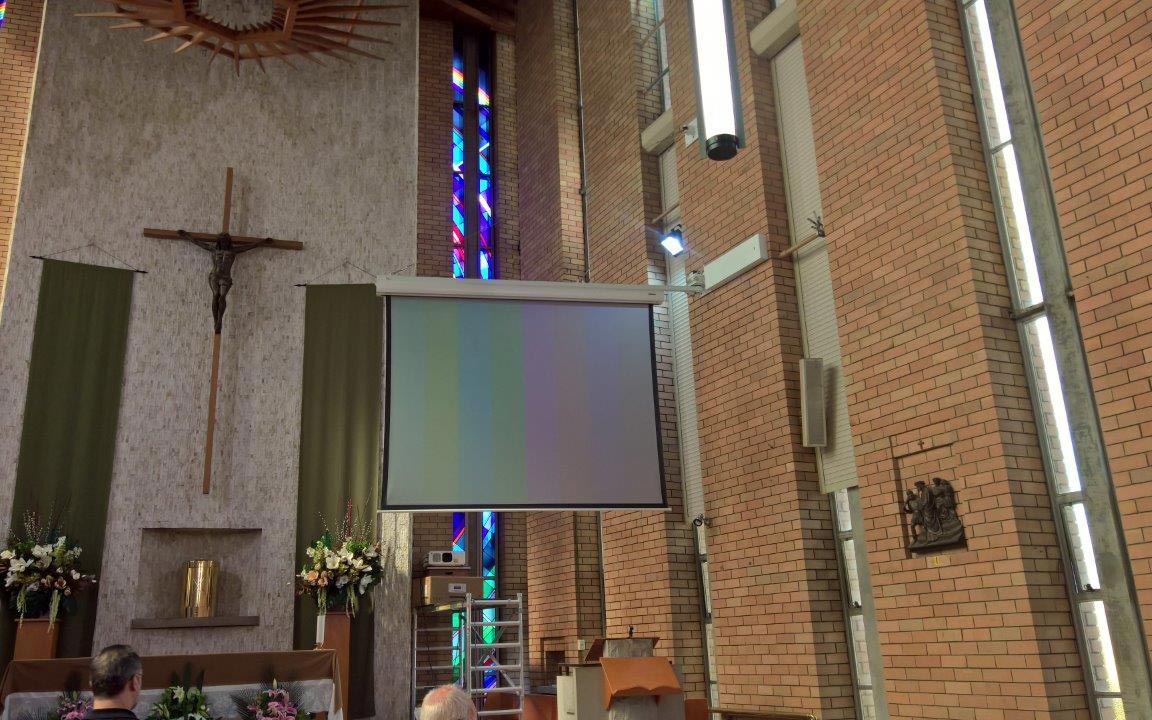

  • Motorised Swing Arm 003

Is your ceiling too high for a traditional projection screen installation? Why not mount the screen to a wall and have it motor out from a flush position to 90 degrees into the room, then motor the screen down into position.

This can be achieved by using the Motorised Swing Arm in combination with one of our motorised projection screens.

Perfect for churches and multi-purpose venues.

Comes with Connect Control and can have time delays programmed into the set-up for staged control of the installation.

  • Description

    Steel swing arm driven mechanically by reduction gearbox and supported by steel cables
  • Sizes

    As shown - Custom Sizes Available
  • Colours

    Black or White, custom colours available
  • Screen

    Recommend with the ElectriCinema range of screens, cost of screen NOT included
  • Travel

    Zero to 120 degrees, suitable for screens 72” to 150” diagonal
  • Installation

    Side wall mounted, with gearbox installation opposite to the travel direction of the arm

To Suit:
ElectriCinema Type A
ElectriCinema Type B

SIZES 72” - 150” DIAGONAL

A hassle free automated option in multi-purpose venues

Benefits include:

  • Motorise screen into position
  • Allows screen to be mounted to wall
  • Connect Control with programmed time delays

  • Specifications

    Motorised Swing Arm

    72" - 150" diagonal

    ITEM NOINCH DIAGONALARM LENGTHFORMAT
    (mm)
    MSA607219-S72"2245Video 4:3
    MSA608419-S84"2485Video4:3
    MSA609619-S96"2730Video4:3
    MSA610019-S100"2815Video4:3
    MSA611519-L115"3120Video4:3
    MSA613019-L130"3420Video4:3
    MSA615019-L150"3830Video4:3
    MSA607229-S72"2375HDTV16:9
    MSA608429-S84"2640HDTV16:9
    MSA609229-S92"2815HDTV16:9
    MSA609629-S96"2905HDTV16:9
    MSA610029-S100"2995HDTV16:9
    MSA611029-L110"3215HDTV16:9
    MSA612029-L120"3435HDTV16:9
    MSA613029-L130"3660HDTV16:9
    MSA615029-L150"4100HDTV16:9
    MSA607269-S72"233016:10
    MSA084669-S84"259016:10
    MSA609269-S92"276016:10
    MSA609669-S96"285016:10
    MSA610069-S100"293516:10
    MSA611069-L110"315016:10
    MSA612069-L120"336516:10
    MSA613069-L130"358016:10
    MSA614069-L140"379516:10
    MSA615069-L150"401016:10
