Screen Lowering Device

  • Pic 1

  • Pic 2

Market Segments

Suitable for Corporate use
Suitable for Education use
Suitable for Government use
Suitable for Home Entertainment

Type B ElectriCinema
Type C ElectriCinema

Sizes 350" - 600" diagonal

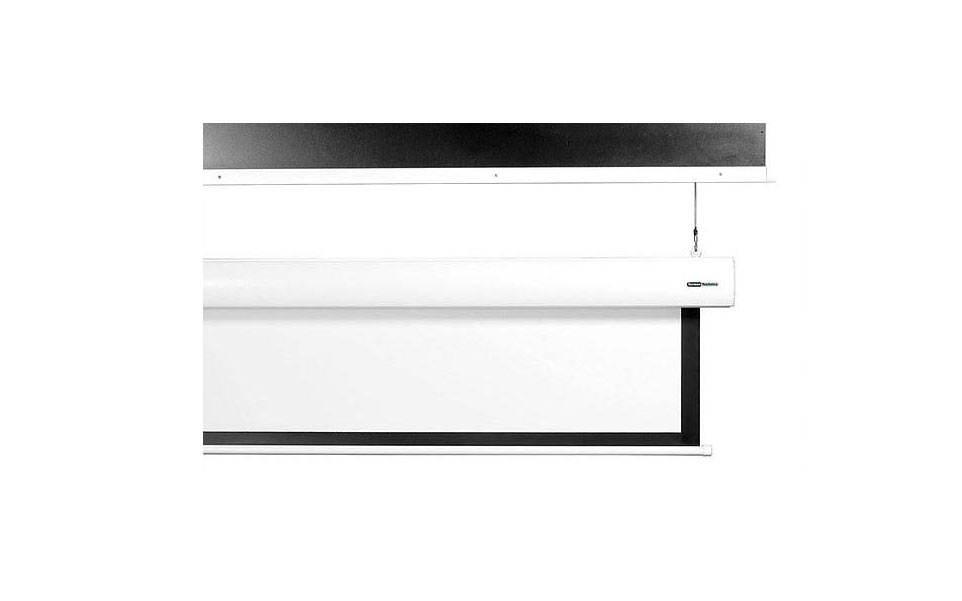

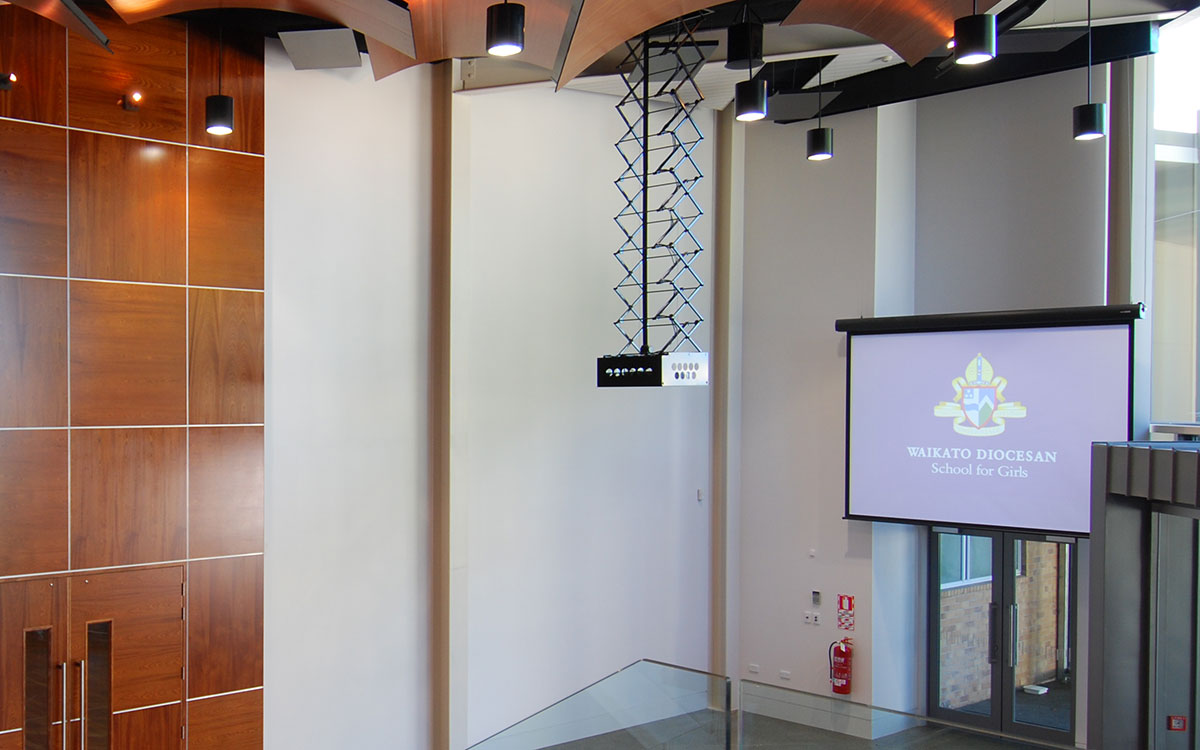

What do you do if you have a very high ceiling, say in a church or town hall? You lower the projection screen into position, then motor down the screen.

Using a secondary motor system that lowers and raises an ElectriCinema projection screen into position, the device comes with a top enclosure for the screen to rest in when not in use and full cable management for the primary screen and secondary lift motor.

Benefits include:

  • Lowers the screen into position
  • Screen enclosure
  • Back-up fall arrestor for additional safety
  • System includes screen

Screen Lowering Device - Type B ElectriCinema

Sizes 72" - 150" diagonal
  • Description

    Lifting Device to lower motorised screen into position with high ceiling
  • Box

    MDF Construction with Ceiling Edge Strip and Cable Management System.
  • Sizes

    72" to 150” Diagonal Custom Sizes & Formats available upon request.
  • Surface

    Unity White FG - Gain 1.1. Refer to screen material options for additional surface options
  • Brackets

    10 off Captive Nuts 3/8 BSW
  • Travel

    Standard Travel Equals Picture Area Width (extra travel available POA)
  • Screen

    Pricing includes the cost of the Motorised Screen (ElectriCinema)
  • Options

    Extra Travel and various control options

Screen Lowering Device - Type C ElectriCinema

Sizes 160" - 220" diagonal
  • Description

    Lifting Device to lower motorised screen into position with high ceiling
  • Box

    MDF Construction with Ceiling Edge Strip and Cable Management System.
  • Sizes

    160" to 220” Diagonal Custom Sizes & Formats available upon request.
  • Surface

    Unity White PVC (no black backing) - Gain 1.0. Refer to screen material options for additional surface options
  • Brackets

    8 off M10 eyebolts
  • Travel

    Standard travel equals picture area width (extra travel available on some models to a maximum of 4200mm)
  • Screen

    Pricing includes the cost of the Motorised Screen (ElectriCinema)
  • Options

    Extra Travel and various control options

  • Specifications

    Screen Lowering Device - Type B ElectriCinema

    Sizes 72" - 150" diagonal

    ITEM NOINCH DIAGONALFORMATBOX LENGTHBOX WIDTHBOX HEIGHT
    (mm)(mm)(mm)
    SLD607219-B72"4:31865210445
    SLD608419-B84"4:32105210445
    SLD609619-B96"4:32350210445
    SLD610019-B100"4:32435210445
    SLD611519-B115"4:32740210445
    SLD613019-B130"4:33040210445
    SLD614019-BR140"4:33425210445
    SLD615019-BR150"4:33645210445
    SLD607229-B72"16:91995210445
    SLD608429-B84"16:92260210445
    SLD609229-B92"16:92435210445
    SLD609629-B96"16:92525210445
    SLD610029-B100"16:92615210445
    SLD611029-B110"16:92835210445
    SLD611529-B115"16:92945210445
    SLD612029-B120"16:93055210445
    SLD613029-B130"16:93280210445
    SLD614029-BR140"16:93635210445
    SLD615029-BR150"16:93865210445
    SLD607269-B72"16:101950210445
    SLD608469-B84"16:102210210445
    SLD609269-B92"16:102380210445
    SLD609669-B96"16:102470210445
    SLD610069-B100"16:102555210445
    SLD611069-B110"16:102770210445
    SLD612069-B120"16:102985210445
    SLD613069-B130"16:103200210445
    SLD614069-BR140"16:103565210445
    SLD615069-BR150"16:103795210445


    Screen Lowering Device - Type C ElectriCinema

    Sizes 180" - 220" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATMAX CASE TRAVELBOX LENGTHBOX WIDTHBOX HEIGHT
    (mm)(mm)(mm)(mm)
    SLD616019-C160"2440 x 3250Video 4:333003800250475
    SLD617019-C170"2590 x 3455Video 4:335004005250475
    SLD618019-C180''2745 x 3660Video 4:337004210250475
    SLD619019-C190''2895 x 3860Video 4:339004410250475
    SLD620019-C200''3050 x 4065Video 4:341004615250475
    SLD621019-C210''3200 x 4265Video 4:342004815250475
    SLD622019-C220"3355 x 4470Video 4:342005020250475
    SLD623019-C230"3505 x 4675Video 4:342005425250475
    SLD616029-C160"1995 x 3545HDTV 16:936004095250475
    SLD617029-C170''2115 x 3765HDTV 16:938004315250475
    SLD618029-C180''2240 x 3985HDTV 16:940004535250475
    SLD619029-C190''2365 x 4205HDTV 16:942004755250475
    SLD620029-C200''2490 x 4425HDTV 16:942004975250475
    SLD621029-C210''2615 x 4650HDTV 16:942005200250475
    SLD622029-C220"2740 x 4870HDTV 16:942005420250475
    SLD616069-C160"2155 x 345016:1035004000250475
    SLD617069-C170''2290 x 366516:1037004215250475
    SLD618069-C180''2425 x 388016:1039004430250475
    SLD619069-C190''2560 x 409516:1041004645250475
    SLD620069-C200''2695 x 431016:1042004860250475
    SLD621069-C210''2830 x 452516:1042005075250475
    SLD622069-C220"2965 x 474016:1042005290250475
