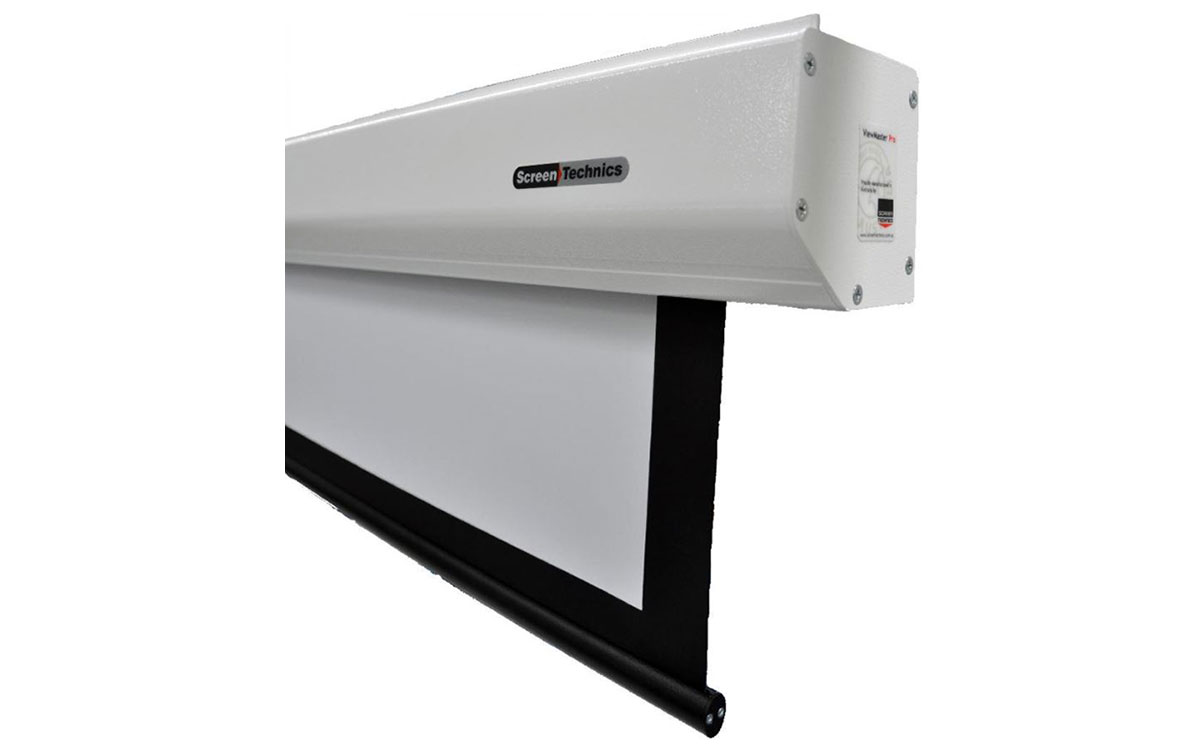

ViewMaster Pro Entry Level Motorised Screen

  • Pic 1

  • Pic 2

Market Segments

Suitable for Boardrooms
Suitable for Corporate use
Suitable for Defense use
Suitable for Education use
Suitable for Government use
Suitable for Home Entertainment

Greater versatility in a cost-efficient screen

Sizes 84" - 230" diagonal

The ViewMaster Pro size range has been increased to offer even greater versatility in a cost-efficient screen.

The ViewMaster Pro offers multi-position brackets, both wall and ceiling, for simple installation, and is available with an optional in-ceiling screen box for all sizes.

Benefits include:

  • Universal bracket system
  • Quiet motor system, C tick approved
  • Premium slat rod design
  • Integrated IR, contact closure control and 12V trigger
  • Fire-rated surface
  • Low VOC, water-based, black border paint
  • ViewMaster Pro offers many of the control options needed in the audio-visual environment
  • Seamless black backed surface up to and including 180”
Where to Buy

ViewMaster Pro - Type 1

Sizes 84" - 115" diagonal

  • Headbox

    Powder Coat White as standard

  • Sizes

    84" diagonal to 115" diagonal
    Custom sizes additional headers and formats available on request

  • Surface

    Unity White Fibreglass Screen - Gain 1.1 Front Projection (Black Backed)
    Hi-Contrast Grey Blacked Backed Fiberglass - Gain 0.8
    Ember Grey Fibreglass

  • Roller Diameter

    63mm Heavy Duty

  • Borders

    50mm sides & bottom with 300mm adjustable top black leader

  • Options

    Optional screen box available for in ceiling installation

ViewMaster Pro - Type 2

Sizes 116" - 150" diagonal

  • Headbox

    Powder Coat White as standard

  • Sizes

    116" diagonal to 150" diagonal
    Custom sizes additional headers and formats available on request

  • Surface

    Unity White Fibreglass Screen - Gain 1.1 Front Projection (Black Backed)
    Hi-Contrast Grey Blacked Backed Fiberglass - Gain 0.8
    Ember Grey Fibreglass

  • Roller Diameter

    80mm Heavy Duty

  • Borders

    50mm sides & bottom with 300mm adjustable top black leader

  • Options

    Optional screen box available for in ceiling installation

ViewMaster Pro - Type 3

Sizes 151" - 230" diagonal

  • Headbox

    Powder Coat White as standard

  • Sizes

    160" diagonal to 230" diagonal
    Custom sizes additional headers and formats available on request

  • Surface

    Seamless Unity White black backed Fibreglass - Gain 1.0 up to 180”
    Unity white PVC (not black backed) - Gain 1.0 above 180”

  • Roller Diameter

    110mm Heavy Duty

  • Borders

    50mm sides & bottom with 300mm adjustable top black leader

  • Options

    Optional screen box available for in ceiling installation

  • Specifications

    ViewMaster Pro -Type 1

    Sizes 84" - 115" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
    (mm)(mm)(kg)
    4508419-184''1280 x 1705Video 4:3198517
    4509619-196''1460 x 1950Video 4:3223018
    4510019-1100''1525 x 2035Video 4:3231519
    4511019-1110''1675 x 2235Video 4:3251521
    4511519-1115''1755 x 2340Video 4:3262023
    4508429-184''1045 x 1860HDTV 16:9214017
    4508529-185"1060 x 1880HDTV 16:9216017
    4509229-192"1145 x 2030HDTV 16:9231018
    4509629-196''1195 x 2125HDTV 16:9240519
    4510029-1100''1245 x 2215HDTV 16:9249519
    4510229-1102"1270 x 2260HDTV 16:9254019
    4511029-1110''1370 x 2435HDTV 16:9271521
    4511229-1112"1395 x 2480HDTV 16:9276023
    4508469-184''1130 x 181016:10209017
    4509469-194"1265 x 202516:10230518
    4509669-196''1295 x 207016:10235019
    4510069-1100''1345 x 215516:10243519
    4510369-1103"1385 x 222016:10250020
    4511069-1110''1480 x 237016:10265022
    4511569-1115''1550 x 248016:10276023

    ViewMaster Pro -Type 1 - Hi-Contrast Grey

    Sizes 84" - 115" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
    (mm)(mm)(kg)
    4508418-184''1280 x 1705Video 4:3198517
    4509618-196''1460 x 1950Video 4:3223018
    4510018-1100''1525 x 2035Video 4:3231519
    4511018-1110''1675 x 2235Video 4:3251521
    4511518-1115''1755 x 2340Video 4:3262023
    4508428-184''1045 x 1860HDTV 16:9214017
    4508528-185"1060 x 1880HDTV 16:9216017
    4509228-192"1145 x 2030HDTV 16:9231018
    4509628-196''1195 x 2125HDTV 16:9240519
    4510028-1100''1245 x 2215HDTV 16:9249519
    4510228-1102"1270 x 2260HDTV 16:9254019
    4511028-1110''1370 x 2435HDTV 16:9271521
    4511228-1112"1395 x 2480HDTV 16:9276023
    4508468-184''1130 x 181016:10209017
    4509468-194"1265 x 202516:10230518
    4509668-196''1295 x 207016:10235019
    4510068-1100''1345 x 215516:10243519
    4510368-1103"1385 x 222016:10250020
    4511068-1110''1480 x 237016:10265022
    4511568-1115''1550 x 248016:10276023

    ViewMaster Pro -Type 1 - Ember Grey

    Sizes 84" - 115" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
    (mm)(mm)(kg)
    4508412-184''1280 x 1705Video 4:3198517
    4509612-196''1460 x 1950Video 4:3223018
    4510012-1100''1525 x 2035Video 4:3231519
    4511012-1110''1675 x 2235Video 4:3251521
    4511512-1115''1755 x 2340Video 4:3262023
    4508422-184''1045 x 1860HDTV 16:9214017
    4508522-185"1060 x 1880HDTV 16:9216017
    4509222-192"1145 x 2030HDTV 16:9231018
    4509622-196''1195 x 2125HDTV 16:9240519
    4510022-1100''1245 x 2215HDTV 16:9249519
    4510222-1102"1270 x 2260HDTV 16:9254019
    4511022-1110''1370 x 2435HDTV 16:9271521
    4511222-1112"1395 x 2480HDTV 16:9276023
    4508462-184''1130 x 181016:10209017
    4509462-194"1265 x 202516:10230518
    4509662-196''1295 x 207016:10235019
    4510062-1100''1345 x 215516:10243519
    4510362-1103"1385 x 222016:10250020
    4511062-1110''1480 x 237016:10265022
    4511562-1115''1550 x 248016:10276023

    ViewMaster Pro -Type 2

    Sizes 116" - 150" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
    (mm)(mm)(kg)
    4512019-2120''1830 X 2440Video 4:3272032
    4513019-2130''1980 x 2640Video 4:3292034
    4514019-2140"2135 x 2845Video 4:3330537
    4515019-2150''2285 x 3050Video 4:3352540
    4512029-2120''1495 x 2655HDTV 16:9293533
    4513029-2130''1615 x 2880HDTV 16:9316037
    4514029-2140''1740 x 3100HDTV 16:9351540
    4515029-2150''1865 x 3320HDTV 16:9374547
    4512069-2120''1615 x 258516:10286532
    4513069-2130''1750 x 280016:10308035
    4514069-2140"1885 x 301516:10344540
    4515069-2150"2020 x 323016:10367545

    ViewMaster Pro -Type 2 - Hi-Contrast Grey

    Sizes 116" - 150" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
    (mm)(mm)(kg)
    4512018-2120''1830 X 2440Video 4:3272032
    4513018-2130''1980 x 2640Video 4:3292034
    4514018-2140"2135 x 2845Video 4:3330537
    4515018-2150''2285 x 3050Video 4:3352540
    4512028-2120''1495 x 2655HDTV 16:9293533
    4513028-2130''1615 x 2880HDTV 16:9316037
    4514028-2140''1740 x 3100HDTV 16:9351540
    4515028-2150''1865 x 3320HDTV 16:9374547
    4512068-2120''1615 x 258516:10286532
    4513068-2130''1750 x 280016:10308035
    4514068-2140"1885 x 301516:10344540
    4515068-2150"2020 x 323016:10367545

    ViewMaster Pro -Type 2 - Ember Grey

    Sizes 116" - 150" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
    (mm)(mm)(kg)
    4512012-2120''1830 X 2440Video 4:3272032
    4513012-2130''1980 x 2640Video 4:3292034
    4514012-2140"2135 x 2845Video 4:3330537
    4515012-2150''2285 x 3050Video 4:3352540
    4512022-2120''1495 x 2655HDTV 16:9293533
    4513022-2130''1615 x 2880HDTV 16:9316037
    4514022-2140''1740 x 3100HDTV 16:9351540
    4515022-2150''1865 x 3320HDTV 16:9374547
    4512062-2120''1615 x 258516:10286532
    4513062-2130''1750 x 280016:10308035
    4514062-2140"1885 x 301516:10344540
    4515062-2150"2020 x 323016:10367545

    ViewMaster Pro -Type 3

    Sizes 151" - 230" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
    (mm)(mm)(kg)
    4516019-3160''2440x 3250Video 4:3365058
    4517019-3170"2590 x 3455Video 4:3385562
    4518019-3180''2745 x 3660Video 4:3406065
    4519019-3190''2895 x 3860Video 4:3426068
    4520019-3200''3050 x 4065Video 4:3446572
    4521019-3210''3200 x 4265Video 4:3466575
    4522019-3220"3355 x 4470Video 4:3487078
    4523019-3230"3505 x 4675Video 4:3507581
    4516029-3160"1995 x 3545HDTV 16:9394563
    4517029-3170''2115 x 3765HDTV 16:9416567
    4518029-3180''2240 x 3985HDTV 16:9438570
    4519029-3190''2365 x 4205HDTV 16:9460573
    4520029-3200''2490 x 4425HDTV 16:9482577
    4521029-3210''2615 x 4650HDTV 16:9505081
    4522029-3220"2740 x 4870HDTV 16:9527085
    4516069-3160"2155 x 345016:10385062
    4517069-3170''2290 x 366516:10406565
    4518069-3180''2425 x 388016:10428069
    4519069-3190''2560 x 409516:10449572
    4520069-3200''2695 x 431016:10471076
    4521069-3210''2830 x 452516:10492579
    4522069-3220"2965 x 474016:10514082

  • Downloads

    Specifications - Type 1

    PDF (1.4MB)

    DOWNLOAD

    Specifications - Type 2

    PDF (1.4MB)

    DOWNLOAD

    Specifications - Type 3

    PDF (1.6MB)

    DOWNLOAD

    Install Instructions

    PDF (2.6MB)

    DOWNLOAD
