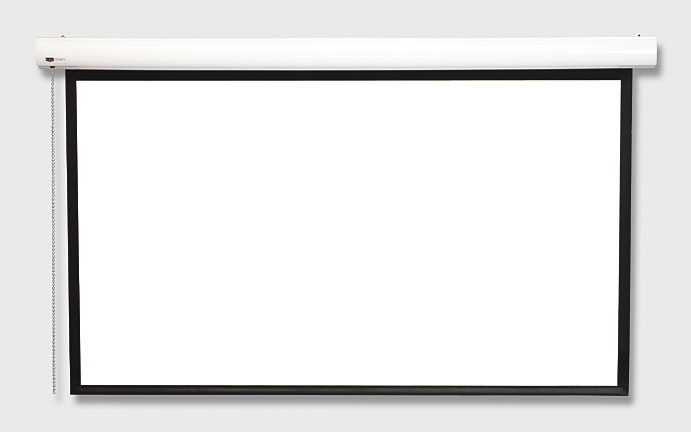

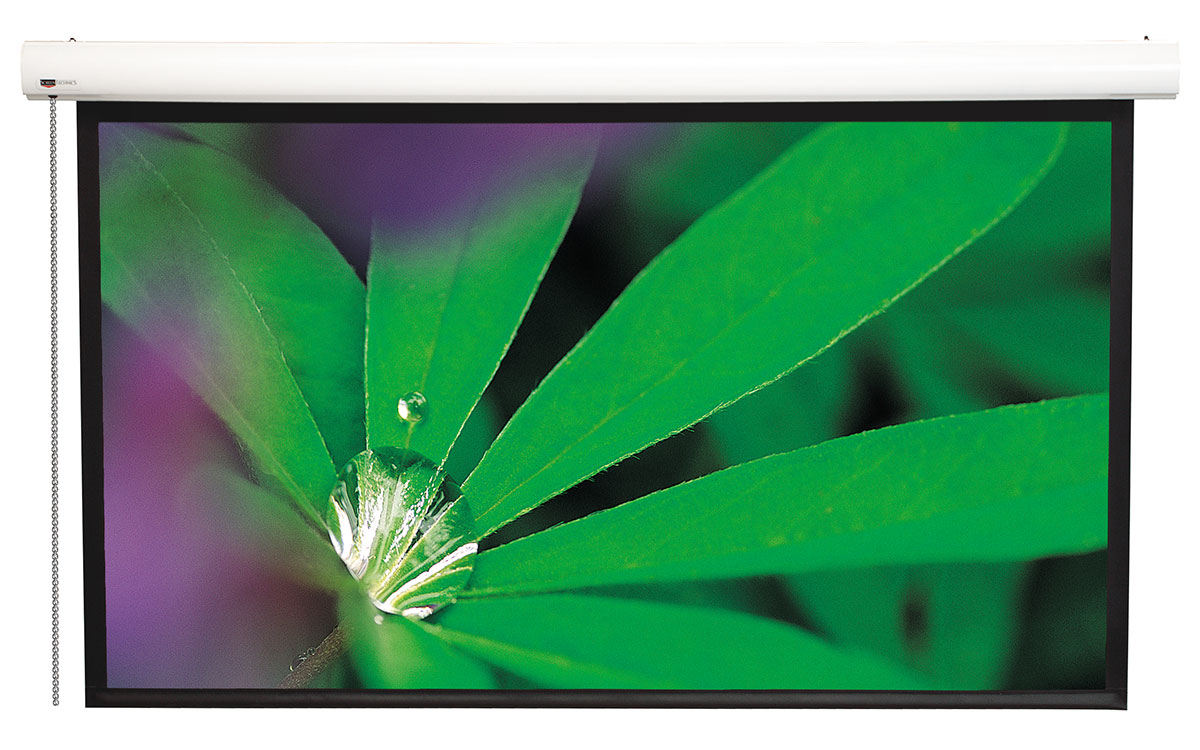

CinemaTech Premium Chain Drive Screen

Pic 1

Pic 2

Pic 3

Pic 4

Market Segments

Suitable for Boardrooms
Suitable for Home Entertainment
Suitable for Education use
Suitable for Government use
Suitable for use in places of Worship

Chain drive offers longer life and improved lay-flat

Sizes 72" - 130" diagonal

The cost effective solution for a professional educational environment without access to power. The CinemaTech utalises a side chain lifting mechanism that offers superior lay flat qualities and extended product life over the traditional spring type. Suitable for multi-purpose areas where designer good looks are expected.

Benefits include:

  • Incremental control operation
  • No temperamental locking mechanisms
  • Years of trouble free use
  • Fully retractable surface
  • Perfect for areas without access to power
  • Chain located on left side of the screen

CinemaTech - Type A / Type B Headbox - Unity White

Sizes 72" - 130" diagonal
  • Description

    Quality home theatre manual chain drive system

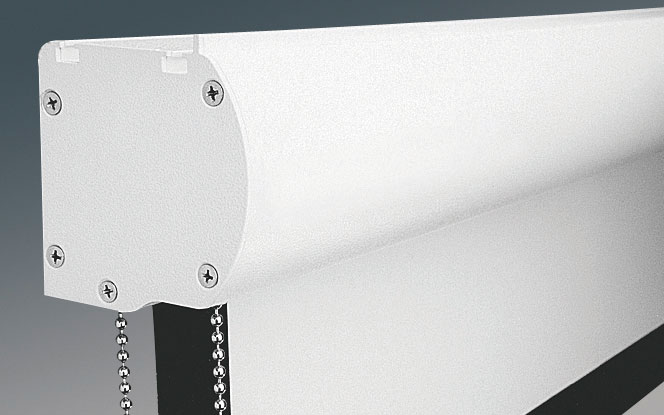

  • Headbox

    Powder Coat White as standard with Black optional

  • Sizes

    72" diagonal to 130" diagonal
    Custom sizes and formats available on request

  • Surface

    Unity white black backed fibreglass (Gain 1.1)

  • Roller Diameter

    Small Canister - 47mm Heavy Duty
    Large Canister - 80mm Heavy Duty

  • Borders

    50mm sides & bottom with 300mm top black leader

  • Leaders

    300mm standard, adjustable top leader
    For additional leader please use a motorised screen

  • Brackets

    One piece clip-on L bracket suitable for wall or ceiling installation

  • Top Leader

    The maximum total top black leader available is 300mm. Use a motorised screen if extra top leader is required

  • Options

    ChromaKey surface
    Custom colours
    LHS chain can be moved RHS

Type A / Type B Headbox - Hi-Contrast Grey

Sizes 72" - 130" diagonal
  • Description

    Quality home theatre manual chain drive system

  • Headbox

    Powder Coat White as standard with Black optional

  • Sizes

    72" diagonal to 130" diagonal
    Custom sizes and formats available on request

  • Surface

    Hi contrast grey black backed fibreglass (Gain 0.8)

  • Roller Diameter

    Small Canister - 47mm Heavy Duty
    Large Canister - 80mm Heavy Duty

  • Borders

    50mm sides & bottom with 300mm top black leader

  • Leaders

    300mm standard, adjustable top leader
    For additional leader please use a motorised screen

  • Brackets

    One piece clip-on L bracket suitable for wall or ceiling installation

  • Top Leader

    The maximum total top black leader available is 300mm. Use a motorised screen if extra top leader is required

  • Options

    ChromaKey surface
    Custom colours
    LHS chain can be moved RHS

Type A / Type B Headbox - Ember Grey

Sizes 72" - 130" diagonal
  • Description

    Quality home theatre manual chain drive system

  • Headbox

    Powder Coat White as standard with Black optional

  • Sizes

    72" diagonal to 130" diagonal
    Custom sizes and formats available on request

  • Surface

    Ember grey fibreglass (Gain 0.8)

  • Roller Diameter

    Small Canister - 47mm Heavy Duty
    Large Canister - 80mm Heavy Duty

  • Borders

    50mm sides & bottom with 300mm top black leader

  • Leaders

    300mm standard, adjustable top leader
    For additional leader please use a motorised screen

  • Brackets

    One piece clip-on L bracket suitable for wall or ceiling installation

  • Top Leader

    The maximum total top black leader available is 300mm. Use a motorised screen if extra top leader is required

  • Options

    ChromaKey surface
    Custom colours
    LHS chain can be moved RHS

This product is not suitable for use with short throw projectors


Specifications

CinemaTech A - Unity White
A = Small Headbox B = Large Headbox

Sizes 72" - 130" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
4307219-A72''1100 x 1465Video 4:3165511
4308419-A84''1280 x 1705Video 4:3189513
4310019-A100''1525 x 2035Video 4:3222515
4311019-B110''1675 x 2235Video 4:3244528
4311519-B115''1755 x 2340Video 4:3255029
4312019-B120''1830 x 2440Video 4:3265030
4313019-B130''1980 x 2640Video 4:3285033
4307229-A72''895 x 1595HDTV 16:9178511
4308429-A84''1045 x 1860HDTV 16:9205013
4309229-A92''1145 x 2035HDTV 16:9222514
4309629-A96''1195 x 2125HDTV 16:9231514.5
4310029-A100''1245 x 2215HDTV 16:9240515
4311029-B110''1370 x 2435HDTV 16:9264527
4312029-B120''1495 x 2655HDTV 16:9286530
4313029-B130''1615 x 2880HDTV 16:9309033
4307269-A72''970 x 155016:10174011
4308469-A84''1130 x 181016:10200013
4309269-A92''1240 x 198016:10217014
4309669-A96''1295 x 207016:10226014.5
4310069-A100''1345 x 215516:10234515
4311069-B110''1480 x 237016:10258026
4312069-B120''1615 x 258516:10279529
4313069-B130''1750 x 280016:10301032


CinemaTech A - Hi Contast Grey

Sizes 72" - 130" diagonal

Introducing The CinemaPro Hi Contrast Grey

When you don’t have full control of ambient light conditions, grey assists the projector in improving black in the spectrum by shifting the contrast band towards the darker scale. This improves overall colour saturation, but with the loss of some brightness normally well compensated for by today’s projectors.

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
4307218-A72''1100 x 1465Video 4:3165511.0
4308418-A84''1280 x 1705Video 4:3189513.0
4310018-A100''1525 x 2035Video 4:3222515.0
4311018-B110''1675 x 2235Video 4:3244528.0
4311518-B115''1755 x 2340Video 4:3255029.0
4312018-B120''1830 x 2440Video 4:3265030.0
4313018-B130''1980 x 2640Video 4:3285033.0
4307228-A72''895 x 1595HDTV 16:9178511.0
4308428-A84''1045 x 1860HDTV 16:9205013.0
4309228-A92''1145 x 2035HDTV 16:9222514.0
4309628-A96''1195 x 2125HDTV 16:9231514.5
4310028-A100''1245 x 2215HDTV 16:9240515.0
4311028-B110''1370 x 2435HDTV 16:9264527.0
4312028-B120''1495 x 2655HDTV 16:9286530.0
4313028-B130''1615 x 2880HDTV 16:9309033.0
4307268-A72''970 x 155016:10174011.0
4308468-A84''1130 x 181016:10200013.0
4309268-A92''1240 x 198016:10217014.0
4309668-A96''1295 x 207016:10226014.5
4310068-A100''1345 x 215516:10234515.0
4311068-B110''1480 x 237016:10258026.0
4312068-B120''1615 x 258516:10279529.0
4313068-B130''1750 x 280016:10301032.0


CinemaTech A - Ember Grey

Sizes 72" - 130" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
4307212-A72''1100 x 1465Video 4:3165511.0
4308412-A84''1280 x 1705Video 4:3189513.0
4310012-A100''1525 x 2035Video 4:3222515.0
4311012-B110''1675 x 2235Video 4:3244528.0
4311512-B115''1755 x 2340Video 4:3255029.0
4312012-B120''1830 x 2440Video 4:3265030.0
4313012-B130''1980 x 2640Video 4:3285033.0
4307222-A72''895 x 1595HDTV 16:9178511.0
4308422-A84''1045 x 1860HDTV 16:9205013.0
4309222-A92''1145 x 2035HDTV 16:9222514.0
4309622-A96''1195 x 2125HDTV 16:9231514.5
4310022-A100''1245 x 2215HDTV 16:9240515.0
4311022-B110''1370 x 2435HDTV 16:9264527.0
4312022-B120''1495 x 2655HDTV 16:9286530.0
4313022-B130''1615 x 2880HDTV 16:9309033.0
4307262-A72''970 x 155016:10174011.0
4308462-A84''1130 x 181016:10200013.0
4309262-A92''1240 x 198016:10217014.0
4309662-A96''1295 x 207016:10226014.5
4310062-A100''1345 x 215516:10234515.0
4311062-B110''1480 x 237016:10258026.0
4312062-B120''1615 x 258516:10279529.0
4313062-B130''1750 x 280016:10301032.0
