ElectriCinema Premium Motorised Screen

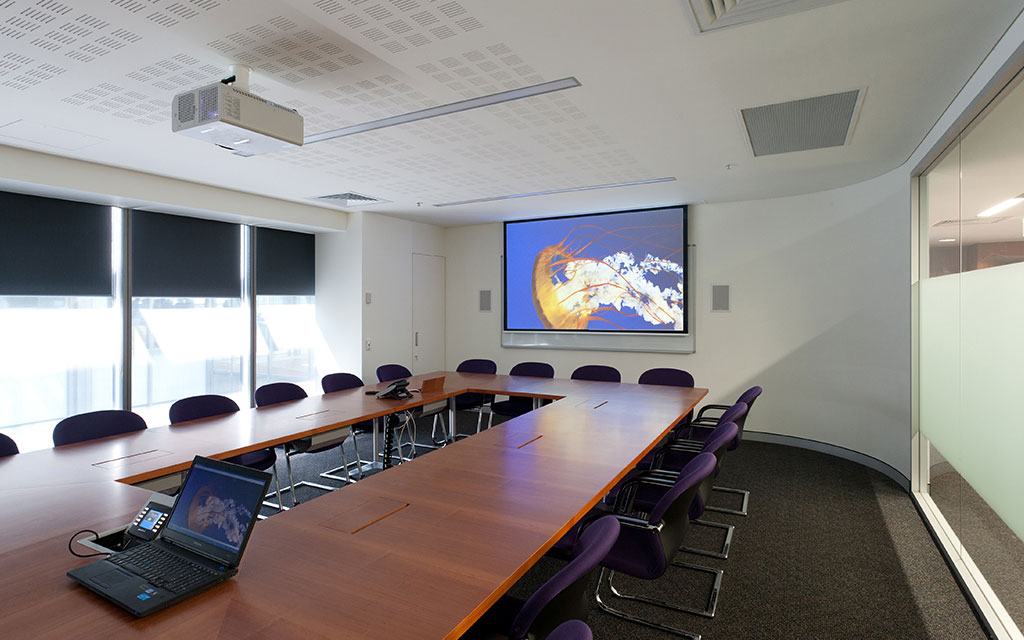

Pic 1

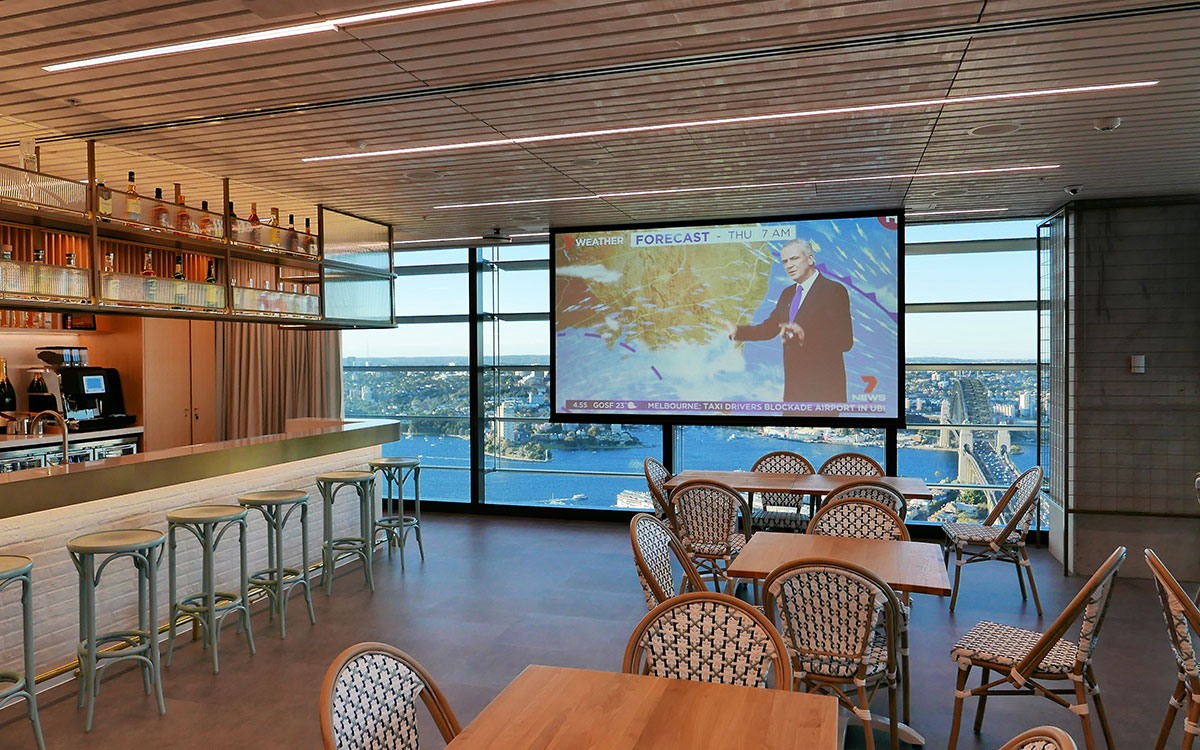

Pic 2

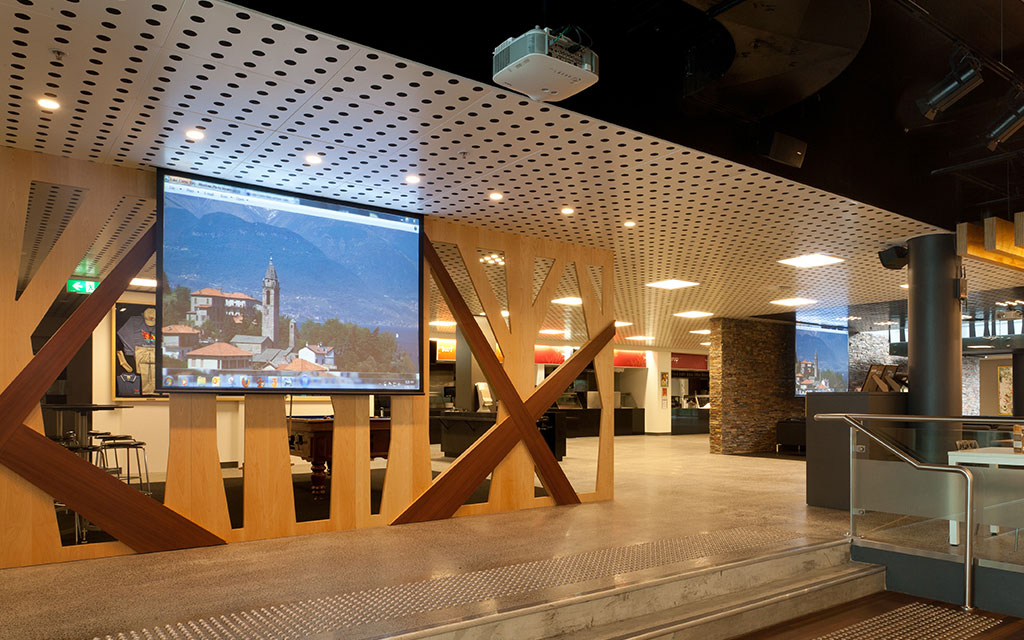

Pic 3

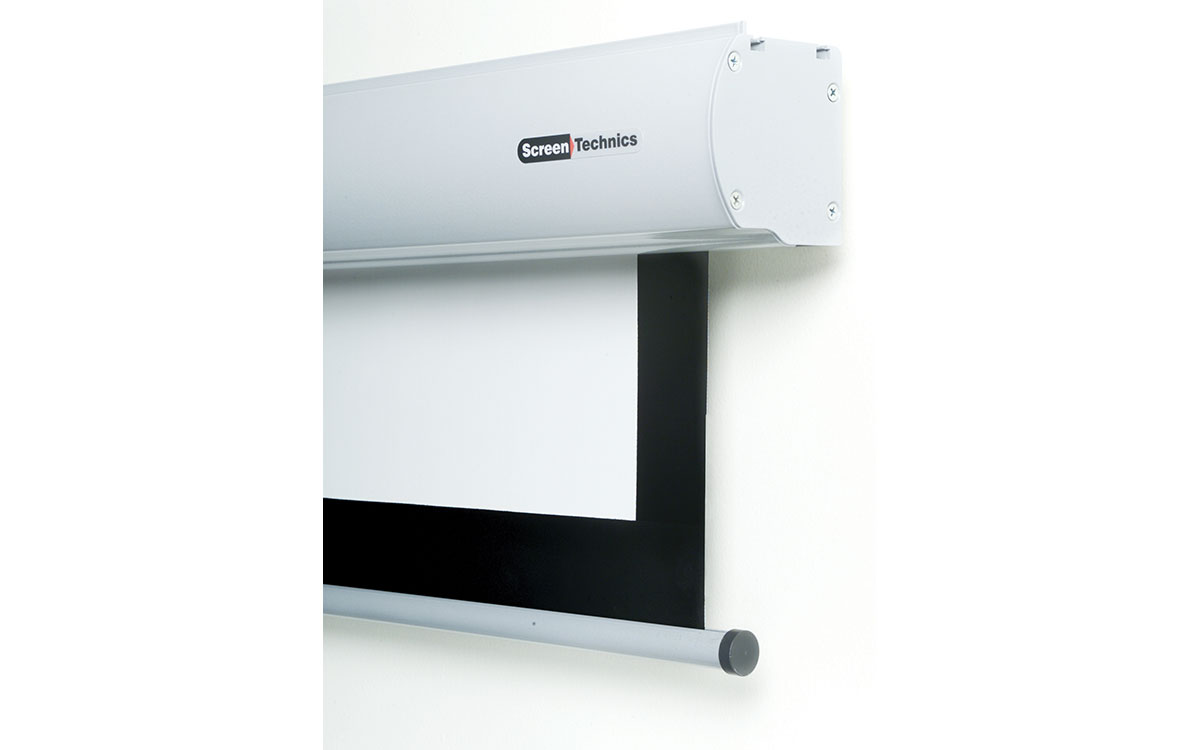

Pic 4

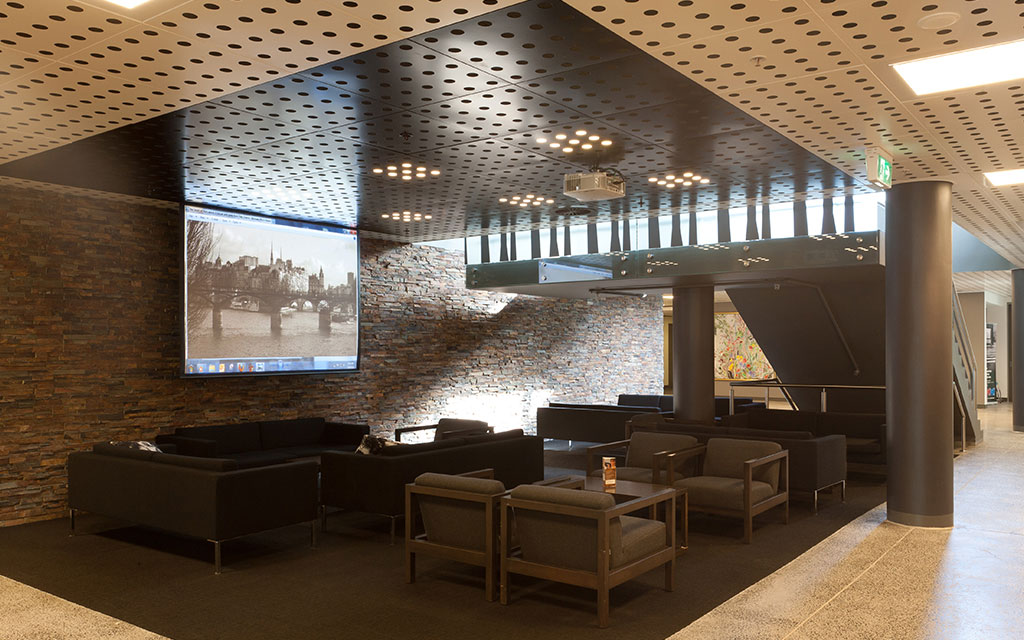

Pic 5

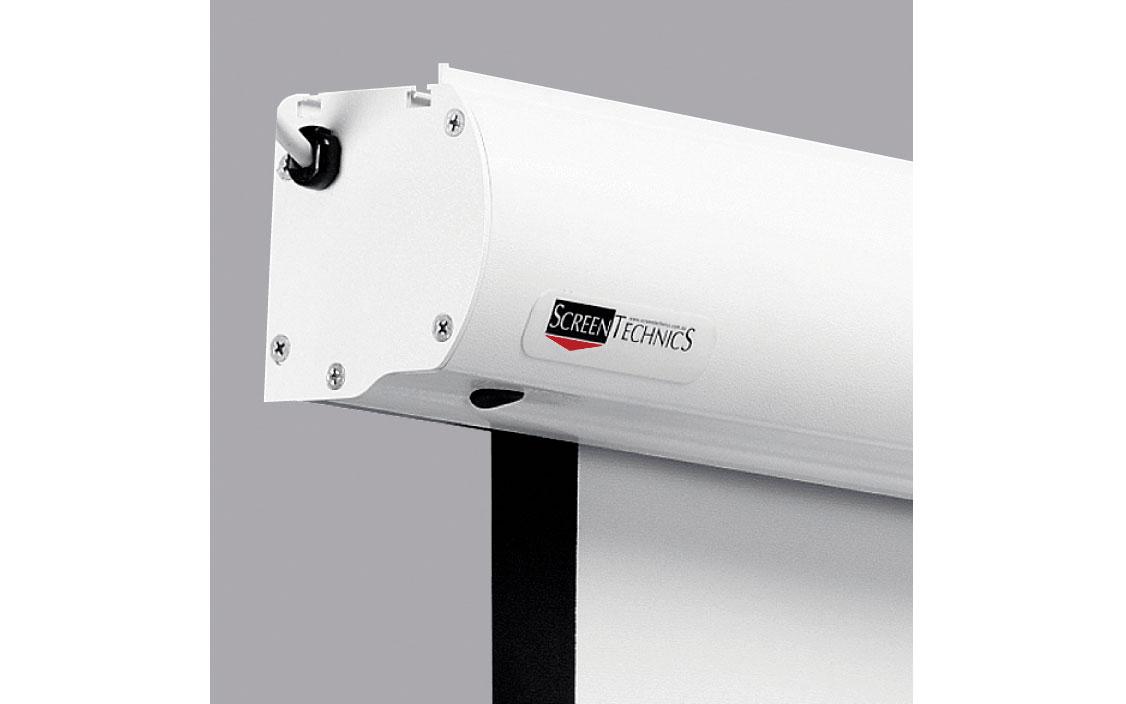

Pic 6

Market Segments

Suitable for Corporate Events
Suitable for Education use
Suitable for Government use
Suitable for use in Hotels
Suitable for Theatre use
Suitable for use in places of Worship

The premium projection screen of choice

Sizes 72" - 375" diagonal

The ElectriCinema has long been the premium projection screen of choice in the AV industry, with all the high quality features that you expect from a Screen Technics product: rugged design, contemporary good looks, and ease of installation with the universal bracket system.

Benefits include:

  • Integrated with Connect IP
  • 12V trigger
  • Contact closure and IR
  • Ability to link and group switch with other Connect control devices.

ElectriCinema - Type A

Sizes 72" - 100" diagonal
  • Description

    Industry leading Integrated Connect Control with IP, IR, Close Contact, 12v Trigger and Link Switching to other Connect controlled devices

  • Headbox

    Designer headbox canister in powder coat white / black optional

  • Surface

    Unity White black backed fibreglass - Gain 1.1
    or
    Hi Contrast Grey black backed fibreglass - Gain 0.8

  • Roller Diameter

    51mm Heavy Duty Roller for enhanced lay-flat qualities

  • Brackets

    Universal wall / ceiling bracket with full width adjustability for ease of install

  • Other Features

    Power located at opposite end of headbox canister from Low Voltage Control, improving installer safety outcomes.
    C Tick Certified Australian made product

ElectriCinema - Type B

Sizes 110" - 150" diagonal
  • Description

    Industry leading Integrated Connect Control with IP, IR, Close Contact, 12v Trigger and Link Switching to other Connect controlled devices

  • Headbox

    Designer headbox canister in powder coat white / black optional

  • Surface

    Unity White black backed fibreglass - Gain 1.1
    orHi Contrast Grey black backed fibreglass - Gain 0.8
    Ember Grey Fibreglass - Gain 0.8

  • Roller Diameter

    80mm Heavy Duty Roller for enhanced lay-flat qualities

  • Brackets

    Universal wall / ceiling bracket with full width adjustability for ease of install

  • Other Features

    Power located at opposite end of headbox canister from Low Voltage Control, improving installer safety outcomes.
    C Tick Certified Australian made product

ElectriCinema - Type C

Sizes 160" - 220" diagonal
  • Description

    Industry leading Integrated Connect Control with IP, IR, Close Contact, 12v Trigger and Link Switching to other Connect controlled devices

  • Headbox

    Designer headbox canister in powder coat white / black optional

  • Surface

    Seamless Unity White black backed fibreglass - Gain 1.0 up to 180º
    Unity white PVC (not black backed) - Gain 1.0 above 180º

  • Roller Diameter

    110mm Heavy Duty Roller for enhanced lay-flat qualities

  • Brackets

    Universal wall / ceiling bracket with full width adjustability for ease of install

  • Other Features

    Power located at opposite end of headbox canister from Low Voltage Control, improving installer safety outcomes.
    C Tick Certified Australian made product

ElectriCinema - Type D

Sizes 200" - 300" diagonal
  • Description

    Designer Style Motorised Projection Screen with Intergrated IP, 12v Trigger, contact closure & IR Remote Controlv Trigger and Link Switching to other Connect controlled devices

  • Headbox

    Colour to be specified at time of order, standard powder coat options are White or Black, Custom colours are available upon request

  • Surface

    Fire rated welded Unity White projection surface (not black backed) - Gain 1.0
    Refer to screen material options for additional surface options

  • Roller Diameter

    150mm Heavy Duty

  • Brackets

    Load Rated M10 Eyebolts

  • Borders

    50mm Sides & bottom with adjustable top black leader. Leader length needs to be specified at time of order. Standard is 300mm. Any extra top leader must be used if ordered as lay flat will be affected

  • Options

    Extra Top Masking - RF RTS Remote or 4 Core Wal Switch
    Custom powder coat colour
    * Power 240 volt single phase 4 Amps

ElectriCinema - Type E

Sizes 300" - 375" diagonal
  • Description

    Designer Style Motorised Projection Screen with Intergrated IP, 12v Trigger, contact closure & IR Remote Control

  • Headbox

    Colour to be specified at time of order, standard powder coat options are White or Black, Custom colours are available upon request

  • Surface

    Fire rated welded Unity White PVC - Gain 1.0
    Refer to screen material options for additional surface options

  • Roller Diameter

    225mm Heavy Duty

  • Brackets

    Load Rated M10 Eyebolts

  • Borders

    50mm Sides & bottom with adjustable top black leader. Leader length needs to be specified at time of order. Standard is 300mm. Any extra top leader must be used if ordered as lay flat will be affected

  • Options

    Extra Top Masking - RF RTS Remote or 4 Core Wal Switch
    Custom powder coat colour
    * Power 240 volt single phase 4 Amps


Specifications

ElectriCinema - Type A - Matt White

Sizes 72" - 100" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0607219-A72''1100 x 1465Video 4:3179014
0608419-A84''1280 x 1705Video 4:3203017
0609619-A96''1465 x 1950Video 4:3227518
0610019-A100''1525 x 2035Video 4:3236019
0607229-A72''895 x 1595HDTV 16:9192015
0608429-A84''1045 x 1860HDTV 16:9218517
0609229-A92''1145 x 2035HDTV 16:9236018
0609629-A96''1195 x 2125HDTV 16:9245019
0610029-A100''1245 x 2215HDTV 16:9254019
0607269-A72''970 x 155016:10187515
0608469-A84''1130 x 181016:10213518
0609269-A92''1240 x 198016:10230518
0609669-A96''1295 x 207016:10239519
0610069-A100''1345 x 215516:10248019


ElectriCinema - Type A - Hi Contrast Grey

Sizes 72" - 100" diagonal

Introducing The ElectriCinema Hi Contrast Grey

When you don’t have full control of ambient light conditions, grey assists the projector in improving black in the spectrum by shifting the contrast band towards the darker scale. This improves overall colour saturation, but with the loss of some brightness normally well compensated for by today’s projectors.

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0607218-A72''1100 x 1465Video 4:3179014
0608418-A84''1280 x 1705Video 4:3203017
0609618-A96''1465 x 1950Video 4:3227518
0610018-A100''1525 x 2035Video 4:3236019
0607228-A72''895 x 1595HDTV 16:9192015
0608428-A84''1045 x 1860HDTV 16:9218517
0609228-A92''1145 x 2035HDTV 16:9236018
0609628-A96''1195 x 2125HDTV 16:9245019
0610028-A100''1245 x 2215HDTV 16:9254019
0607268-A72''970 x 155016:10187515
0608468-A84''1130 x 181016:10213518
0609268-A92''1240 x 198016:10230518
0609668-A96''1295 x 207016:10239519
0610068-A100''1345 x 215516:10248019


ElectriCinema - Type A - Ember Grey

Sizes 72" - 100" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0607212-A72''1100 x 1465Video 4:3179014
0608412-A84''1280 x 1705Video 4:3203017
0609612-A96''1465 x 1950Video 4:3227518
0610012-A100''1525 x 2035Video 4:3236019
0607222-A72''895 x 1595HDTV 16:9192015
0608422-A84''1045 x 1860HDTV 16:9218517
0609222-A92''1145 x 2035HDTV 16:9236018
0609622-A96''1195 x 2125HDTV 16:9245019
0610022-A100''1245 x 2215HDTV 16:9254019
0607262-A72''970 x 155016:10187515
0608462-A84''1130 x 181016:10213518
0609262-A92''1240 x 198016:10230518
0609662-A96''1295 x 207016:10239519
0610062-A100''1345 x 215516:10248019


ElectriCinema - Type B - Unity White

Sizes 110" - 150" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0611519-B115''1755 x 2340Video 4:3266531
0612019-B120"1830 x 2440Video 4:3276532
0613019-B130''1980 x 2640Video 4:3296534
0614019-B140"2135 x 2845Video 4:3317037
0615019-B150''2285 x 3050Video 4:3337540
0611029-B110''1370 x 2435HDTV 16:9276031
0611529-B115''1430 x 2545HDTV 16:9287032
0612029-B120''1495 x 2655HDTV 16:9298033
0613029-B130''1615 x 2880HDTV 16:9320537
0614029-B140"1740 x 3100HDTV 16:9342540
0615029-B150''1865 x 3320HDTV 16:9364547
0611069-B110''1480 x 237016:10269531
0612069-B120''1615 x 258516:10291032
0613069-B130''1750 x 280016:10312535
0614069-B140''1885 x 301516:10334040
0615069-B150''2020 x 323016:10355545


ElectriCinema - Type B - Hi Contrast Grey

Sizes 110" - 150" diagonal

Introducing The ElectriCinema Hi Contrast Grey

When you don’t have full control of ambient light conditions, grey assists the projector in improving black in the spectrum by shifting the contrast band towards the darker scale. This improves overall colour saturation, but with the loss of some brightness normally well compensated for by today’s projectors.

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0611518-B115''1755 x 2340Video 4:3266531
0612018-B120"1830 x 2440Video 4:3276532
0613018-B130''1980 x 2640Video 4:3296534
0614018-B140"2135 x 2845Video 4:3317037
0615018-B150''2285 x 3050Video 4:3337540
0611028-B110''1370 x 2435HDTV 16:9276031
0611528-B115''1430 x 2545HDTV 16:9287032
0612028-B120''1495 x 2655HDTV 16:9298033
0613028-B130''1615 x 2880HDTV 16:9320537
0614028-B140"1740 x 3100HDTV 16:9342540
0615028-B150''1865 x 3320HDTV 16:9364547
0611068-B110''1480 x 237016:10269531
0612068-B120''1615 x 258516:10291032
0613068-B130''1750 x 280016:10312535
0614068-B140''1885 x 301516:10334040
0615068-B150''2020 x 323016:10355545


ElectriCinema - Type B - Ember Grey

Sizes 115" - 150" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0611512-B115''1755 x 2340Video 4:3266531
0612012-B120"1830 x 2440Video 4:3276532
0613012-B130''1980 x 2640Video 4:3296534
0614012-B140"2135 x 2845Video 4:3317037
0615012-B150''2285 x 3050Video 4:3337540
0611022-B110''1370 x 2435HDTV 16:9276031
0611522-B115''1430 x 2545HDTV 16:9287032
0612022-B120''1495 x 2655HDTV 16:9298033
0613022-B130''1615 x 2880HDTV 16:9320537
0614022-B140"1740 x 3100HDTV 16:9342540
0615022-B150''1865 x 3320HDTV 16:9364547
0611062-B110''1480 x 237016:10269531
0612062-B120''1615 x 258516:10291032
0613062-B130''1750 x 280016:10312535
0614062-B140''1885 x 301516:10334040
0615062-B150''2020 x 323016:10355545


ElectriCinema - Type C - Unity White

Sizes 160" - 220" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0616019-C160''2440x 3250Video 4:3365058
0617019-C170"2590 x 3455Video 4:3385562
0618019-C180''2745 x 3660Video 4:3406065
0619019-C190''2895 x 3860Video 4:3426068
0620019-C200''3050 x 4065Video 4:3446572
0621019-C210''3200 x 4265Video 4:3466575
0622019-C220''3355 x 4470Video 4:3487078
0623019-C230''3505 x 4675Video 4:3507581
0616029-C160"1995 x 3545HDTV 16:9394563
0617029-C170''2115 x 3765HDTV 16:9416567
0618029-C180''2240 x 3985HDTV 16:9438570
0619029-C190''2365 x 4205HDTV 16:9460573
0620029-C200''2490 x 4425HDTV 16:9482577
0621029-C210''2615 x 4650HDTV 16:9505081
0622029-C220''2740 x 4870HDTV 16:9527085
0616069-C160"2155 x 345016:10385062
0617069-C170''2290 x 366516:10406565
0618069-C180''2425 x 388016:10428069
0619069-C190''2560 x 409516:10449572
0620069-C200''2695 x 431016:10471076
0621069-C210''2830 x 452516:10492579
0622069-C220''2695 x 474016:10514082


ElectriCinema - Type D - Unity White

Sizes 200" - 300" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0620019-D200''3050 x 4065Video 4:34615135
0622519-D225"3430 x 4570Video4:35120145
0625019-D250''3810 x 5080Video 4:35630160
0627519-D275''4190 x 5590Video 4:36140170
0630019-D300''4570 x 6100Video 4:36650185
0620029-D200''2490 x 4425HDTV 16:94975140
0622529-D225''2800 x 4980HDTV 16:95530155
0625029-D250''3115 x 5535HDTV 16:96085170
0627529-D275''3425 x 6085HDTV 16:96635185
0620069-D200''2695 x 431016:104860140
0622569-D225''3030 x 485016:105400150
0625069-D250''3365 x 538516:105935165
0627569-D275''3705 x 592516:106475180


ElectriCinema - Type E - Unity White

Sizes 300" - 375" diagonal

ITEM NOINCH DIAGONALIMAGE SIZEFORMATHEADBOX SIZEWEIGHT
(mm)(mm)(kg)
0630019-E300''4570 x 6100Video 4:36650235
0632519-E325"4955 x 6605Video 4:37155250
0635019-E350''5330 x 7110Video 4:37660270
0637519-E375''5715 x 7620Video 4:38170285
0630029-E300''3735 x 6640HDTV 16:97190250
0632529-E325''4050 x 7195HDTV 16:97745275
0635029-E350''4355 x 7745HDTV 16:98295290
0637529-E375''4670 x 8300HDTV 16:98850310
0630069-E300''4040 x 646516:107015245
0632569-E325''4380 x 700516:107555265
0635069-E350''4715 x 754016:108090285
0637569-E375"5050 x 808016:108630300

Downloads

Specifications - Type A

PDF (1.8MB)

DOWNLOAD

Specifications - Type B

PDF (1.5MB)

DOWNLOAD

Specifications - Type C

PDF (0.9MB)

DOWNLOAD

Specifications - Type D

PDF (1.2MB)

DOWNLOAD

Specifications - Type E

PDF (2.4MB)

DOWNLOAD


Install Instructions - Type A, B & C

PDF (6.3MB)

DOWNLOAD

Install Instructions - Type A, B & C (with IP Protocol)

PDF (3.6MB)

DOWNLOAD

Install Instructions - Type D

PDF (2.3MB)

DOWNLOAD

Install Instructions - Type E

PDF (2.3MB)

DOWNLOAD

Engineered in
Australia

Australia

22-24 Suttor Road
Moss Vale NSW 2577

New Zealand

44 Mahana Road
Te Rapa, Hamilton
Website - Bold New Media

© Copyright 2021 Screen Technics
