ElectriCinema Side Tension Screen

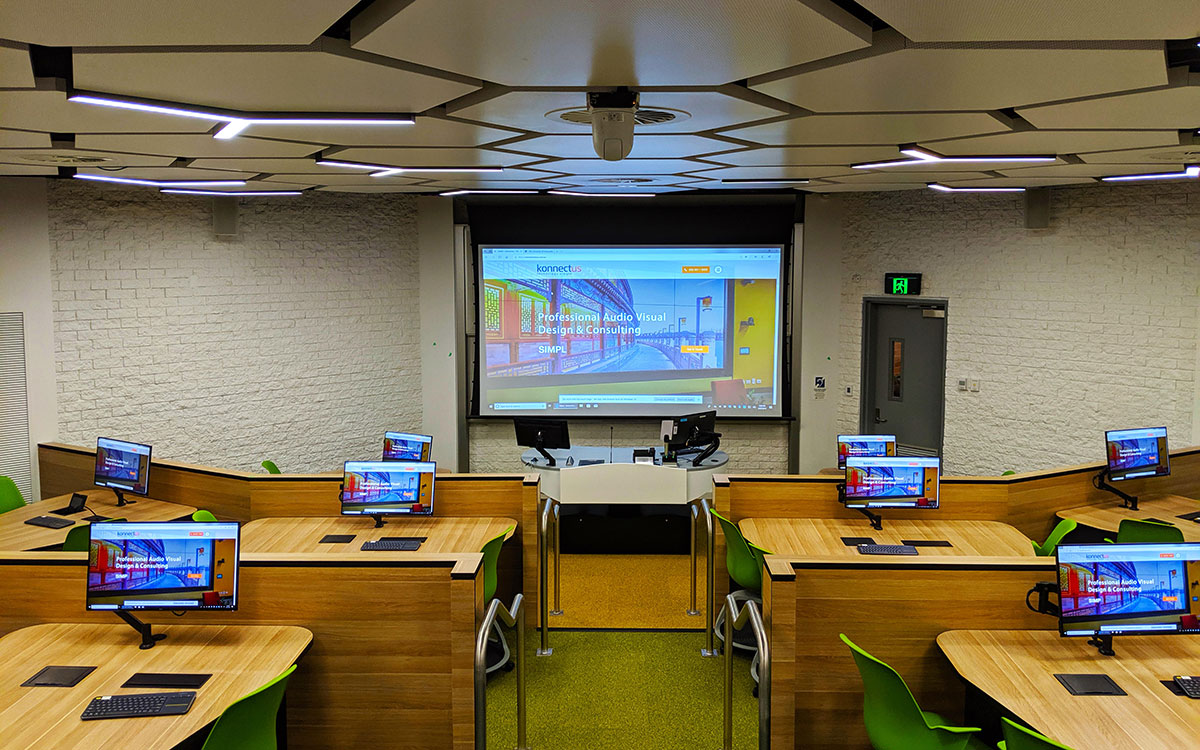

Pic 1

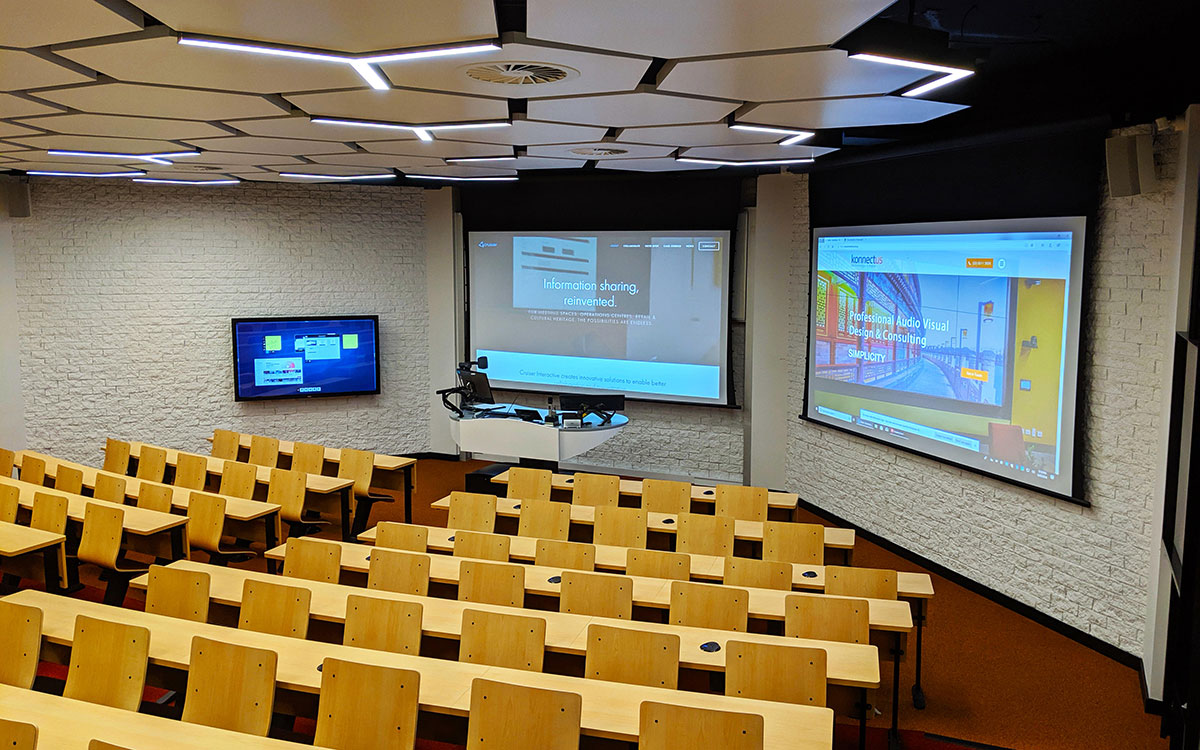

Pic 2

Market Segments

Control

Fully integrated with Connect IP, 12V trigger, contact closure and IR plus the ability to link and group switch with other Connect control devices.
Short Throw Projectors

The ElectriCinema Side Tension screen is the only retractable screen suitable for use with a short throw projector. For the best results we recommend using the CinemaSnap range.

The ultimate experience in a motorised screen

Sizes 84" - 200" diagonal

The side tension system offers the ultimate experience in a motorised projection screen, providing the best possible lay flat with its large diameter roller, and side tensioning system that pulls the screen flat. Suitable for home theatre.

Benefits include:

Excellent lay flat
Quiet operation
Reliability
Fully integrated with Connect IP

Where to Buy

ElectriCinema - Side Tension - Type B

Sizes 84" - 140" diagonal

Description

Designer Style Motorised Projection Screen with Integrated IP, 12v Trigger, contact closure & IR Remote Control
Headbox

Powder Coat White as standard Black as same cost option
Sizes

84” to 140” Diagonally, Custom Sizes & Formats available upon request
Surface

Unity White black backed PVC - Gain 1.0
Hi Contrast Grey PVC - Gain 0.8
Matrix Ash Grey - Gain 0.65
Matrix Flame Grey - Gain 0.8
Roller Diameter

81mm Heavy Duty
Border

50mm Sides with 300mm adjustable top black leader
Brackets

One piece clip-on L bracket suitable for wall or ceiling installation
Top Leader

Standard top leader on all screens is 300mm. Set at 50mm in the factory.
Additional leader can be ordered, contact the sales team
Options

Extra Top Masking, RF RTS Remote, custom powder coat colours

ElectriCinema - Side Tension - Type C

Sizes 150" - 200" diagonal

Description

Designer Style Motorised Projection Screen with Integrated IP, 12v Trigger, contact closure & IR Remote Control
Headbox

Powder Coat White as standard Black as same cost option
Sizes

150” to 200” Diagonally, Custom Sizes & Formats available upon request
Surface

Unity White black backed PVC - Gain 1.0
Hi Contrast Grey PVC - Gain 0.8
Matrix Ash Grey - Gain 0.65
Matrix Flame Grey - Gain 0.8
Roller Diameter

110 Heavy Duty
Border

50mm Sides with 300mm adjustable top black leader
Brackets

One piece clip-on L bracket suitable for wall or ceiling installation
Top Leader

Standard top leader on all screens is 300mm. Set at 50mm in the factory.
Additional leader can be ordered, contact the sales team
Options

Extra Top Masking, RF RTS Remote, custom powder coat colours

NOTE: This product is not available with a Type A Case

Specifications

ElectriCinema - Side Tension - Type B - Unity White PVC

Sizes 84" - 140" diagonal

ITEM NO	INCH DIAGONAL	IMAGE SIZE	FORMAT	HEADBOX SIZE	WEIGHT
		(mm)		(mm)	(kg)

0608419-STS-B	84"	1280 x 1705	Video 4:3	Seek Advice*	26
0609619-STS-B	96"	1460 x 1950	Video 4:3	Seek Advice*	28
0610019-STS-B	100"	1525 x 2035	Video 4:3	Seek Advice*	29
0611519-STS-B	115''	1755 x 2340	Video 4:3	Seek Advice*	34
0612019-STS-B	120"	1830 x 2440	Video 4:3	Seek Advice*	35
0613019-STS-B	130''	1980 x 2640	Video 4:3	Seek Advice*	37

0608429-STS-B	84"	1045 X 1860	HDTV 16:9	Seek Advice*	28
0609229-STS-B	92"	1145 X 2035	HDTV 16:9	Seek Advice*	30
0609629-STS-B	96"	1195 X 2125	HDTV 16:9	Seek Advice*	31
0610029-STS-B	100"	1245 X 2215	HDTV 16:9	Seek Advice*	32
0611029-STS-B	110''	1370 x 2435	HDTV 16:9	Seek Advice*	34
0611529-STS-B	115''	1430 x 2545	HDTV 16:9	Seek Advice*	35
0612029-STS-B	120''	1495 x 2655	HDTV 16:9	Seek Advice*	37
0613029-STS-B	130''	1615 x 2880	HDTV 16:9	Seek Advice*	40
0614029-STS-B	140"	1740 X 3100	HDTV 16:9	Seek Advice*	44

0608469-STS-B	84"	1130 x 1810	16:10	Seek Advice*	27
0609269-STS-B	92"	1240 x 1980	16:10	Seek Advice*	29
0609669-STS-B	96"	1295 x 2070	16:10	Seek Advice*	30
0610069-STS-B	100"	1345 x 2155	16:10	Seek Advice*	32
0611069-STS-B	110''	1480 x 2370	16:10	Seek Advice*	34
0612069-STS-B	120''	1615 x 2585	16:10	Seek Advice*	36
0613069-STS-B	130''	1750 x 2800	16:10	Seek Advice*	39
0614069-STS-B	140''	1885 x 3015	16:10	Seek Advice*	43
*Should additional leader be required the headbox length will increase

ElectriCinema - Side Tension - Type B - Hi Contrast Grey

Sizes 84" - 140" diagonal

Introducing The ElectriCinema Hi Contrast Grey

When you don’t have full control of ambient light conditions, grey assists the projector in improving black in the spectrum by shifting the contrast band towards the darker scale. This improves overall colour saturation, but with the loss of some brightness normally well compensated for by today’s projectors.

ITEM NO	INCH DIAGONAL	IMAGE SIZE	FORMAT	HEADBOX SIZE	WEIGHT
		(mm)		(mm)	(kg)

0608418-STS-B	84"	1280 x 1705	Video 4:3	Seek Advice*	26
0609618-STS-B	96"	1460 x 1950	Video 4:3	Seek Advice*	28
0610018-STS-B	100"	1525 x 2035	Video 4:3	Seek Advice*	29
0611518-STS-B	115''	1755 x 2340	Video 4:3	Seek Advice*	34
0612018-STS-B	120"	1830 x 2440	Video 4:3	Seek Advice*	35
0613018-STS-B	130''	1980 x 2640	Video 4:3	Seek Advice*	37

0608428-STS-B	84"	1045 X 1860	HDTV 16:9	Seek Advice*	28
0609228-STS-B	92"	1145 X 2035	HDTV 16:9	Seek Advice*	30
0609628-STS-B	96"	1195 X 2125	HDTV 16:9	Seek Advice*	31
0610028-STS-B	100"	1245 X 2215	HDTV 16:9	Seek Advice*	32
0611028-STS-B	110''	1370 x 2435	HDTV 16:9	Seek Advice*	34
0611528-STS-B	115''	1430 x 2545	HDTV 16:9	Seek Advice*	35
0612028-STS-B	120''	1495 x 2655	HDTV 16:9	Seek Advice*	37
0613028-STS-B	130''	1615 x 2880	HDTV 16:9	Seek Advice*	40
0614028-STS-B	140"	1740 X 3100	HDTV 16:9	Seek Advice*	44

0608468-STS-B	84"	1130 x 1810	16:10	Seek Advice*	27
0609268-STS-B	92"	1240 x 1980	16:10	Seek Advice*	29
0609668-STS-B	96"	1295 x 2070	16:10	Seek Advice*	30
0610068-STS-B	100"	1345 x 2155	16:10	Seek Advice*	32
0611068-STS-B	110''	1480 x 2370	16:10	Seek Advice*	34
0612068-STS-B	120''	1615 x 2585	16:10	Seek Advice*	36
0613068-STS-B	130''	1750 x 2800	16:10	Seek Advice*	39
0614068-STS-B	140''	1885 x 3015	16:10	Seek Advice*	43
*Should additional leader be required the headbox length will increase

ElectriCinema - Side Tension - Type B - Matrix Ash Grey

Sizes 84" - 140" diagonal

ITEM NO	INCH DIAGONAL	IMAGE SIZE	FORMAT	HEADBOX SIZE	WEIGHT
		(mm)		(mm)	(kg)

060841-STS-B	84"	1280 x 1705	Video 4:3	Seek Advice*	26
0609611-STS-B	96"	1460 x 1950	Video 4:3	Seek Advice*	28
0610011-STS-B	100"	1525 x 2035	Video 4:3	Seek Advice*	29
0611511-STS-B	115''	1755 x 2340	Video 4:3	Seek Advice*	34
0612011-STS-B	120"	1830 x 2440	Video 4:3	Seek Advice*	35
0613011-STS-B	130''	1980 x 2640	Video 4:3	Seek Advice*	37

0608421-STS-B	84"	1045 X 1860	HDTV 16:9	Seek Advice*	28
0609221-STS-B	92"	1145 X 2035	HDTV 16:9	Seek Advice*	30
0609621-STS-B	96"	1195 X 2125	HDTV 16:9	Seek Advice*	31
0610021-STS-B	100"	1245 X 2215	HDTV 16:9	Seek Advice*	32
0611021-STS-B	110''	1370 x 2435	HDTV 16:9	Seek Advice*	34
0611521-STS-B	115''	1430 x 2545	HDTV 16:9	Seek Advice*	35
0612021-STS-B	120''	1495 x 2655	HDTV 16:9	Seek Advice*	37
0613021-STS-B	130''	1615 x 2880	HDTV 16:9	Seek Advice*	40
0614021-STS-B	140"	1740 X 3100	HDTV 16:9	Seek Advice*	44

0608461-STS-B	84"	1130 x 1810	16:10	Seek Advice*	27
0609261-STS-B	92"	1240 x 1980	16:10	Seek Advice*	29
0609661-STS-B	96"	1295 x 2070	16:10	Seek Advice*	30
0610061-STS-B	100"	1345 x 2155	16:10	Seek Advice*	32
0611061-STS-B	110''	1480 x 2370	16:10	Seek Advice*	34
0612061-STS-B	120''	1615 x 2585	16:10	Seek Advice*	36
0613061-STS-B	130''	1750 x 2800	16:10	Seek Advice*	39
0614061-STS-B	140''	1885 x 3015	16:10	Seek Advice*	43
*Should additional leader be required the headbox length will increase

ElectriCinema - Side Tension - Type B - Matrix Flame Grey

Sizes 84" - 140" diagonal

ITEM NO	INCH DIAGONAL	IMAGE SIZE	FORMAT	HEADBOX SIZE	WEIGHT
		(mm)		(mm)	(kg)

060844-STS-B	84"	1280 x 1705	Video 4:3	Seek Advice*	26
0609614-STS-B	96"	1460 x 1950	Video 4:3	Seek Advice*	28
0610014-STS-B	100"	1525 x 2035	Video 4:3	Seek Advice*	29
0611514-STS-B	115''	1755 x 2340	Video 4:3	Seek Advice*	34
0612014-STS-B	120"	1830 x 2440	Video 4:3	Seek Advice*	35
0613014-STS-B	130''	1980 x 2640	Video 4:3	Seek Advice*	37

0608424-STS-B	84"	1045 X 1860	HDTV 16:9	Seek Advice*	28
0609224-STS-B	92"	1145 X 2035	HDTV 16:9	Seek Advice*	30
0609624-STS-B	96"	1195 X 2125	HDTV 16:9	Seek Advice*	31
0610024-STS-B	100"	1245 X 2215	HDTV 16:9	Seek Advice*	32
0611024-STS-B	110''	1370 x 2435	HDTV 16:9	Seek Advice*	34
0611524-STS-B	115''	1430 x 2545	HDTV 16:9	Seek Advice*	35
0612024-STS-B	120''	1495 x 2655	HDTV 16:9	Seek Advice*	37
0613024-STS-B	130''	1615 x 2880	HDTV 16:9	Seek Advice*	40
0614024-STS-B	140"	1740 X 3100	HDTV 16:9	Seek Advice*	44

0608464-STS-B	84"	1130 x 1810	16:10	Seek Advice*	27
0609264-STS-B	92"	1240 x 1980	16:10	Seek Advice*	29
0609664-STS-B	96"	1295 x 2070	16:10	Seek Advice*	30
0610064-STS-B	100"	1345 x 2155	16:10	Seek Advice*	32
0611064-STS-B	110''	1480 x 2370	16:10	Seek Advice*	34
0612064-STS-B	120''	1615 x 2585	16:10	Seek Advice*	36
0613064-STS-B	130''	1750 x 2800	16:10	Seek Advice*	39
0614064-STS-B	140''	1885 x 3015	16:10	Seek Advice*	43
*Should additional leader be required the headbox length will increase

ElectriCinema - Side Tension - Type C - Unity White PVC

Sizes 150" - 200" diagonal

ITEM NO	INCH DIAGONAL	IMAGE SIZE	FORMAT	HEADBOX SIZE	WEIGHT
		(mm)		(mm)	(kg)

0615019-STS-C	150''	2285 x 3050	Video 4:3	Seek Advice*	65
0616019-STS-C	160"	2440 x 3250	Video 4:3	Seek Advice*	68
0617019-STS-C	170"	2590 x 3455	Video 4:3	Seek Advice*	72
0618019-STS-C	180''	2745 x 3660	Video 4:3	Seek Advice*	75
0619019-STS-C	190"	2895 x 3860	Video 4:3	Seek Advice*	79
0620019-STS-C	200"	3050 x 4065	Video 4:3	Seek Advice*	82

0615029-STS-C	150''	1865 x 3320	HDTV 16:9	Seek Advice*	70
0616029-STS-C	160"	1995 x 3545	HDTV 16:9	Seek Advice*	73
0617029-STS-C	170''	2115 x 3765	HDTV 16:9	Seek Advice*	77
0618029-STS-C	180''	2240 x 3985	HDTV 16:9	Seek Advice*	80
0619029-STS-C	190"	2365 x 4205	HDTV 16:9	Seek Advice*	83
0620029-STS-C	200"	2490 x 4425	HDTV 16:9	Seek Advice*	87

0615069-STS-C	150''	2020 x 3230	16:10	Seek Advice*	68
0616069-STS-C	160"	2155 x 3450	16:10	Seek Advice*	72
0617069-STS-C	170''	2290 x 3665	16:10	Seek Advice*	75
0618069-STS-C	180''	2425 x 3880	16:10	Seek Advice*	79
0619069-STS-C	190"	2560 x 4095	16:10	Seek Advice*	82
0620069-STS-C	200"	2695 x 4310	16:10	Seek Advice*	86
*Should additional leader be required the headbox length will increase

ElectriCinema - Side Tension - Type C - Hi Contrast Grey

Sizes 150" - 200" diagonal

Introducing The ElectriCinema Hi Contrast Grey

ITEM NO	INCH DIAGONAL	IMAGE SIZE	FORMAT	HEADBOX SIZE	WEIGHT
		(mm)		(mm)	(kg)

0615018-STS-C	150''	2285 x 3050	Video 4:3	Seek Advice*	65
0616018-STS-C	160"	2440 x 3250	Video 4:3	Seek Advice*	68
0617018-STS-C	170"	2590 x 3455	Video 4:3	Seek Advice*	72
0618018-STS-C	180''	2745 x 3660	Video 4:3	Seek Advice*	75
0619018-STS-C	190"	2895 x 3860	Video 4:3	Seek Advice*	79
0620018-STS-C	200"	3050 x 4065	Video 4:3	Seek Advice*	82

0615028-STS-C	150''	1865 x 3320	HDTV 16:9	Seek Advice*	70
0616028-STS-C	160"	1995 x 3545	HDTV 16:9	Seek Advice*	73
0617028-STS-C	170''	2115 x 3765	HDTV 16:9	Seek Advice*	77
0618028-STS-C	180''	2240 x 3985	HDTV 16:9	Seek Advice*	80
0619028-STS-C	190"	2365 x 4205	HDTV 16:9	Seek Advice*	83
0620028-STS-C	200"	2490 x 4425	HDTV 16:9	Seek Advice*	87

0615068-STS-C	150''	2020 x 3230	16:10	Seek Advice*	68
0616068-STS-C	160"	2155 x 3450	16:10	Seek Advice*	72
0617068-STS-C	170''	2290 x 3665	16:10	Seek Advice*	75
0618068-STS-C	180''	2425 x 3880	16:10	Seek Advice*	79
0619068-STS-C	190"	2560 x 4095	16:10	Seek Advice*	82
0620068-STS-C	200"	2695 x 4310	16:10	Seek Advice*	86
*Should additional leader be required the headbox length will increase

ElectriCinema - Side Tension - Type C - Matrix Ash Grey

Sizes 150" - 180" diagonal

ITEM NO	INCH DIAGONAL	IMAGE SIZE	FORMAT	HEADBOX SIZE	WEIGHT
		(mm)		(mm)	(kg)

0615011-STS-C	150''	2285 x 3050	Video 4:3	Seek Advice*	65
0616011-STS-C	160"	2440 x 3250	Video 4:3	Seek Advice*	68
0617011-STS-C	170"	2590 x 3455	Video 4:3	Seek Advice*	72
0611011-STS-C	180''	2745 x 3660	Video 4:3	Seek Advice*	75
0619011-STS-C	190"	2895 x 3860	Video 4:3	Seek Advice*	79
0620011-STS-C	200"	3050 x 4065	Video 4:3	Seek Advice*	82

0615021-STS-C	150''	1865 x 3320	HDTV 16:9	Seek Advice*	70
0616021-STS-C	160"	1995 x 3545	HDTV 16:9	Seek Advice*	73
0617021-STS-C	170''	2115 x 3765	HDTV 16:9	Seek Advice*	77
0618021-STS-C	180''	2240 x 3985	HDTV 16:9	Seek Advice*	80
0619021-STS-C	190"	2365 x 4205	HDTV 16:9	Seek Advice*	83
0620021-STS-C	200"	2490 x 4425	HDTV 16:9	Seek Advice*	87

0615061-STS-C	150''	2020 x 3230	16:10	Seek Advice*	68
0616061-STS-C	160"	2155 x 3450	16:10	Seek Advice*	72
0617061-STS-C	170''	2290 x 3665	16:10	Seek Advice*	75
0618061-STS-C	180''	2425 x 3880	16:10	Seek Advice*	79
*Should additional leader be required the headbox length will increase

ElectriCinema - Side Tension - Type C - Matrix Flame Grey

Sizes 150" - 180" diagonal

ITEM NO	INCH DIAGONAL	IMAGE SIZE	FORMAT	HEADBOX SIZE	WEIGHT
		(mm)		(mm)	(kg)

0615014-STS-C	150''	2285 x 3050	Video 4:3	Seek Advice*	65
0616014-STS-C	160"	2440 x 3250	Video 4:3	Seek Advice*	68
0617014-STS-C	170"	2590 x 3455	Video 4:3	Seek Advice*	72
0614014-STS-C	180''	2745 x 3660	Video 4:3	Seek Advice*	75
0619014-STS-C	190"	2895 x 3860	Video 4:3	Seek Advice*	79
0620014-STS-C	200"	3050 x 4065	Video 4:3	Seek Advice*	82

0615024-STS-C	150''	1865 x 3320	HDTV 16:9	Seek Advice*	70
0616024-STS-C	160"	1995 x 3545	HDTV 16:9	Seek Advice*	73
0617024-STS-C	170''	2115 x 3765	HDTV 16:9	Seek Advice*	77
0618024-STS-C	180''	2240 x 3985	HDTV 16:9	Seek Advice*	80
0619024-STS-C	190"	2365 x 4205	HDTV 16:9	Seek Advice*	83
0620024-STS-C	200"	2490 x 4425	HDTV 16:9	Seek Advice*	87

0645064-STS-C	150''	2020 x 3230	16:10	Seek Advice*	68
0646064-STS-C	160"	2155 x 3450	16:10	Seek Advice*	72
0647064-STS-C	170''	2290 x 3665	16:10	Seek Advice*	75
0648064-STS-C	180''	2425 x 3880	16:10	Seek Advice*	79
*Should additional leader be required the headbox length will increase

Downloads

Specifications - Type B

PDF (2.0MB)

DOWNLOAD

Specifications - Type C

PDF (2.1MB)

DOWNLOAD

Install Instructions - Type B & C (with IP Protocol}

PDF (3.7MB)

DOWNLOAD

ElectriCinema Side Tension Screen

Pic 1

Pic 2

Market Segments

Control

Short Throw Projectors

The ultimate experience in a motorised screen

Benefits include:

ElectriCinema - Side Tension - Type B

Sizes 84" - 140" diagonal

Description

Headbox

Sizes

Surface

Roller Diameter

Border

Brackets

Top Leader

Options

ElectriCinema - Side Tension - Type C

Sizes 150" - 200" diagonal

Description

Headbox

Sizes

Surface

Roller Diameter

Border

Brackets

Top Leader

Options

NOTE: This product is not available with a Type A Case

Specifications

ElectriCinema - Side Tension - Type B - Unity White PVC

Sizes 84" - 140" diagonal

ElectriCinema - Side Tension - Type B - Hi Contrast Grey

Sizes 84" - 140" diagonal

ElectriCinema - Side Tension - Type B - Matrix Ash Grey

Sizes 84" - 140" diagonal

ElectriCinema - Side Tension - Type B - Matrix Flame Grey

Sizes 84" - 140" diagonal

ElectriCinema - Side Tension - Type C - Unity White PVC

Sizes 150" - 200" diagonal

ElectriCinema - Side Tension - Type C - Hi Contrast Grey

Sizes 150" - 200" diagonal

ElectriCinema - Side Tension - Type C - Matrix Ash Grey

Sizes 150" - 180" diagonal

ElectriCinema - Side Tension - Type C - Matrix Flame Grey

Sizes 150" - 180" diagonal

Downloads

Specifications - Type B

Specifications - Type C

Install Instructions - Type B & C (with IP Protocol}

Request More Information

Contact Us

Products

Service & Support

Company

Engineered in Australia

Australia

New Zealand

Engineered in
Australia
