ViewMaster Pro In-ceiling Screen Box

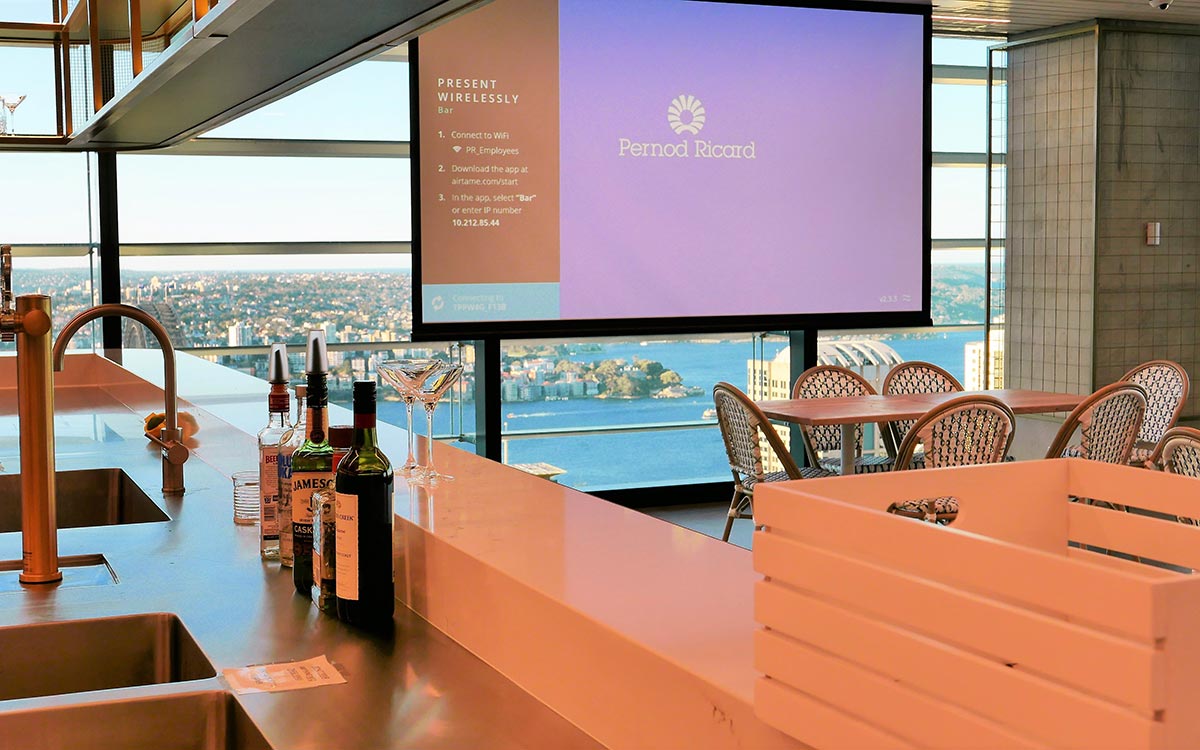

  • Pic 1

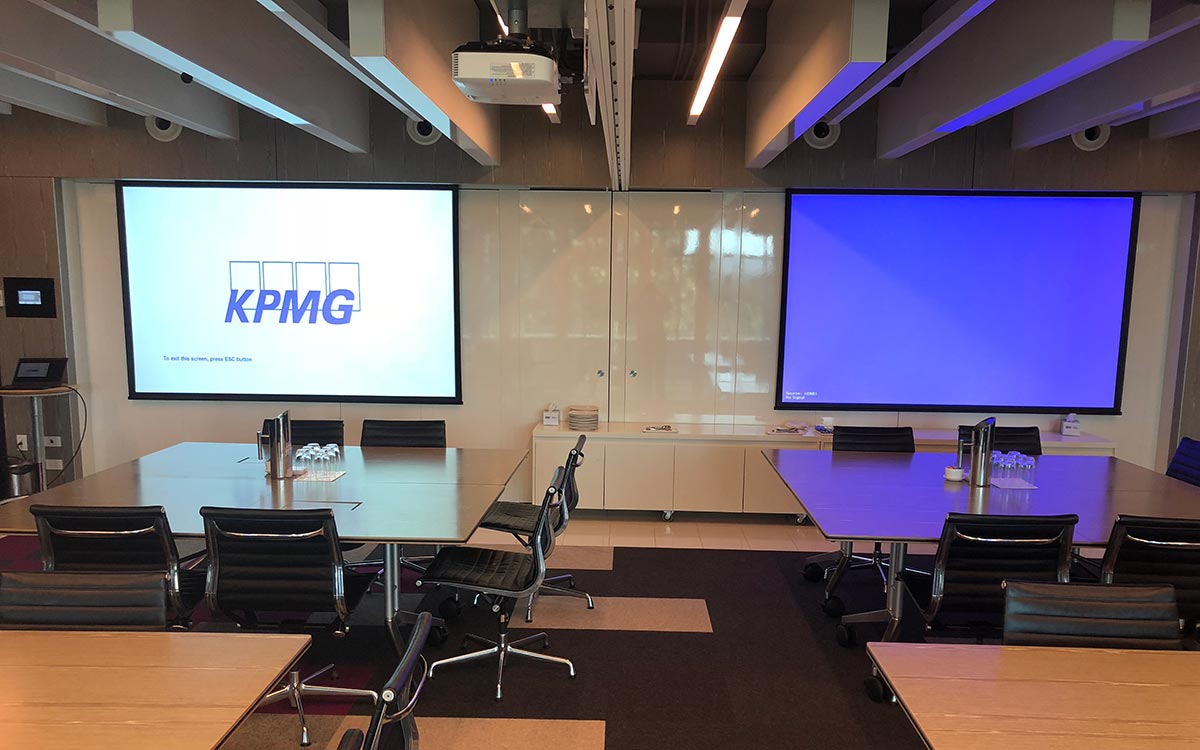

  • Pic 3

  • Pic 4

Market Segments

Suitable for Corporate use
Suitable for Education use
Suitable for Government use
Suitable for Home Entertainment

A neat and practical in-ceiling solution

Sizes 84" - 230" diagonal

To suit ViewMaster Pro motorised screens.

The ViewMaster Pro Screen Box allows you to install a ViewMaster Pro into the ceiling so that it is out of sight when not in use, but instantly accessible.

Benefits include:

  • Integrated power junction box for electrical connection
  • Universal bracketing system for the screen
  • Can be pre-fitted during the building construction stage
  • Pre-wiring facility
  • Maintenance access door
  • Single trade installation

ViewMaster Pro Screen Box - Type 1

Sizes 84" - 115" diagonal
  • Headbox

    In-Ceiling installation with power junction and bracket system
  • Sizes

    84” to 115” Diagonal
    Custom Sizes & Formats available upon request
  • Screen

    Suitable only for the Viewmaster Pro range of screens
  • Box

    EO Certified MDF construction with fully painted Low VOC 2 pack white underside & ceiling edge covers for easy install. Custom colours available
  • Brackets

    Utilises brackets supplied with Viewmaster Pro Screen
  • Installation

    Utilising ø5/16 Whitworth threaded holes with either brooker rod or eye bolts to suitable structure

ViewMaster Pro Screen Box - Type 2

Sizes 120" - 150" diagonal
  • Headbox

    In-Ceiling installation with power junction and bracket system
  • Sizes

    120” to 150” Diagonal
    Custom Sizes & Formats available upon request
  • Screen

    Suitable only for the Viewmaster Pro range of screens
  • Box

    EO Certified MDF construction with fully painted Low VOC 2 pack white underside & ceiling edge covers for easy install. Custom colours available
  • Brackets

    Utilises brackets supplied with Viewmaster Pro Screen
  • Installation

    Utilising ø5/16 Whitworth threaded holes with either brooker rod or eye bolts to suitable structure

ViewMaster Pro Screen Box - Type 3

Sizes 160" - 230" diagonal
  • Headbox

    In-Ceiling installation with power junction and bracket system
  • Sizes

    160” to 230” Diagonal
    Custom Sizes & Formats available upon request
  • Screen

    Suitable only for the Viewmaster Pro range of screens
  • Box

    EO Certified MDF construction with fully painted Low VOC 2 pack white underside & ceiling edge covers for easy install. Custom colours available
  • Brackets

    Utilises brackets supplied with Viewmaster Pro Screen
  • Installation

    Utilising ø5/16 Whitworth threaded holes with either brooker rod or eye bolts to suitable structure

  • Specifications

    ViewMaster Pro Screen Box - Type 1

    Sizes 84" - 115" diagonal

    For New Zealand specific specifications, please download the relevant Specifications PDF

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATBOX LENGTHBOX HEIGHTBOX DEPTHWEIGHT
    (mm)(mm)(mm)(mm)(kg)
    VB4508419-184''1280 x 1705Video 4:3215517521530
    VB4509619-196''1460 x 1950Video 4:3240017521532
    VB4510019-1100''1525 x 2035Video 4:3248517521533
    VB4511019-1110''1675 x 2235Video 4:3268517521546
    VB4511519-1115''1755 x 2340Video 4:3279017521547
    VB4508429-184''1045 x 1860HDTV 16:9231017521530
    VB4508529-185"1060 x 1880HDTV 16:9233017521531
    VB4509229-192"1145 x 2035HDTV 16:9248517521533
    VB4509629-196''1195 x 2125HDTV 16:9257517521535
    VB4510029-1100''1245 x 2215HDTV 16:9266517521538
    VB4510229-1102"1270 x 2260HDTV 16:9271017521540
    VB4511029-1110''1370 x 2435HDTV 16:9288517521546
    VB4511229-1112"1395 x 2480HDTV 16:9293017521547
    VB4508469-184''1130 x 181016:10226017521530
    VB4509469-194"1265 x 202516:10247517521532
    VB4509669-196''1295 x 207016:10252017521533
    VB4510069-1100''1345 x 215516:10260517521535
    VB4510369-11031385 x 222016:10267017521537
    VB4511069-1110''1480 x 237016:10282017521545
    VB4511569-1115''1550 x 248016:10293017521547


    ViewMaster Pro Screen Box - Type 2

    Sizes 120" - 150" diagonal

    For New Zealand specific specifications, please download the relevant Specifications PDF

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATBOX LENGTHBOX HEIGHTBOX DEPTHWEIGHT
    (mm)(mm)(mm)(mm)(kg)
    VB4512019-2120''1830 x 2440Video 4:3293520023546
    VB4513019-2130''1980 x 2640Video 4:3313520023549
    VB4514019-2R140"2135 x 2845Video 4:3352020023552
    VB4515019-2R150''2285 x 3050Video 4:3374020023556
    VB4512029-2120''1495 x 2655HDTV 16:9315020023548
    VB4513029-2130''1615 x 2880HDTV 16:9337520023551
    VB4514029-2R140''1740 x 3100HDTV 16:9373020023557
    VB4515029-2R150''1865 x 3320HDTV 16:9396020023562
    VB4512069-2120''1615 x 258516:10308020023548
    VB4513069-2130''1750 x 280016:10329520023551
    VB4514069-2R140''1885 x 301516:10366020023557
    VB4515069-2R150''2020 x 323016:10389020023562


    ViewMaster Pro Screen Box - Type 3

    Sizes 160" - 230" diagonal

    For New Zealand specific specifications, please download the relevant Specifications PDF

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATBOX LENGTHBOX HEIGHTBOX DEPTHWEIGHT
    (mm)(mm)(mm)(mm)(kg)
    VB4516019-3160''2440 x 3250Video 4:3384023026576
    VB4517019-3170"2590 x 3445Vidoe 4:3403523026580
    VB4518019-3180"2745 x 3660Video 4:3425023026584
    VB4519019-3190''2895 x 3860Video 4:3445023026588
    VB4520019-3200''3050 x 4065Video 4:3465523026592
    VB4521019-3210''3200 x 4265Video 4:3485523026595
    VB4522019-3220''3355 x 4470Video 4:35060230265100
    VB4523019-3230''3505 x 4675Video 4:35265230265103
    VB4516029-3160"1995 x 3545HDTV 16:9413523026582
    VB4517029-3170''2115 x 3765HDTV 16:9435523026585
    VB4518029-3180''2240 x 3985HDTV 16:9457523026590
    VB4519029-3190''2365 x 4205HDTV 16:9479523026595
    VB4520029-3200''2490 x 4425HDTV 16:95015230265100
    VB4521029-3210''2615 x 4650HDTV 16:95240230265105
    VB4522029-3220"2740 x 4870HDTV 16:95460230265107
    VB4516069-3160"2155 x 345016:10404023026580
    VB4517069-3170''2290 x 366516:10425523026584
    VB4518069-3180"2425 x 388016:10447023026588
    VB4519069-3190''2560 x 409516:10468523026592
    VB4520069-3200''2695 x 431016:10490023026596
    VB4521069-3210''2830 x 452516:105115230265102
    VB4522069-3220''2695 x 474016:105330230265105
