Interfit Swing Down Flat Panel Screen Lifter

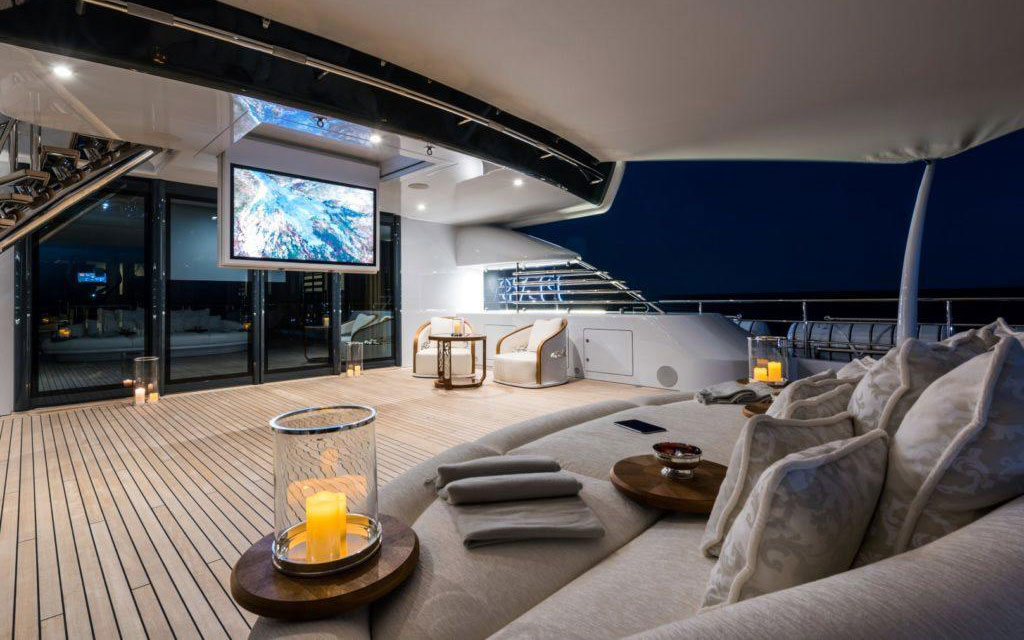

Not enough space to install a Flat Panel Lift vertically in the ceiling? Why not install it horizontally and watch it swing down into position ready for use!

Adjustable to swing up to 25 degrees past the vertical plane, the Swing Down Interfit Flat Panel Screen Lifter ensures Flat Panel visibility for the viewing audience from boardroom to bedroom.

The Interfit Flat Panel Lift ....... Your lifter by choice.

Market Segments

Suitable for Home Entertainment
Suitable for Education use
Suitable for Corporate use

NOTES

  • Maximum Panel depth is 65mm
  • Panel is mounted using VESA holes no allowance for arms has been made
  • Maximum Panel weight is 50 Kg
  • Panel can be adjusted to a maximum of 25˚ past vertical
  • Design has inbuilt fall arresting system

Why not install your flat panel screen horizontally and watch it swing down into position ready for use?

ACCOMMODATEs PANELS 24” - 65”

Providing a unique solution to limited space situations, the Swing Down Interfit Flat Panel Lifter is designed using a single integrated box with ceiling edge cover strips and a fitted door for a simple, modular, single trade installation.

Benefits include:

  • Mechanical Lifting Arms
  • Fail-Safe Mechanism
  • Easy, Single Trade Installation
  • Caged one piece unit, utilising nutserts for ‘L’ Brackets or eyebolts for chain install.

  • Specifications

    Interfit Swing Down Lifts

    PART NUMBERMAX PANEL WIDTHMAX PANEL HEIGHTCUTOUT SIZE LEFT TO RIGHTCUTOUT SIZE FRONT TO BACK,
    DOES NOT ALLOW FOR BRACKETS
    VESA PATTERN
    1490800790mm500mm945mm635mm200
    1490900890mm560mm1045mm695mm200
    1491000990mm615mm1145mm750mm200 300 400
    14911001090mm670mm1245mm805mm200 300 400
    14912001190mm725mm1345mm860mm200 300 400 600
    14913001290mm785mm1445mm920mm200 300 400 600
    14914001390mm840mm1545mm975mm200 300 400 600 800
    14915001490mm895mm1645mm1030mm200 300 400 600 800

  • Downloads

    Specifications

    PDF (0.9MB)

    DOWNLOAD
