ElectriCinema In-ceiling Screen Box

  • Pic 2

  • Pic 1

  • Pic 3

Market Segments

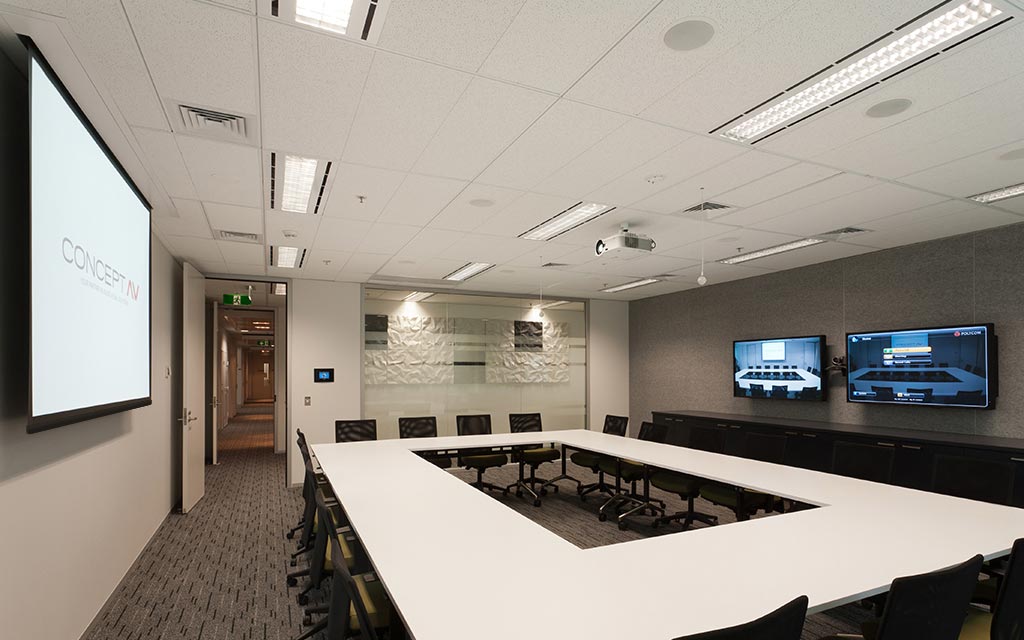

Suitable for Boardrooms
Suitable for Corporate use

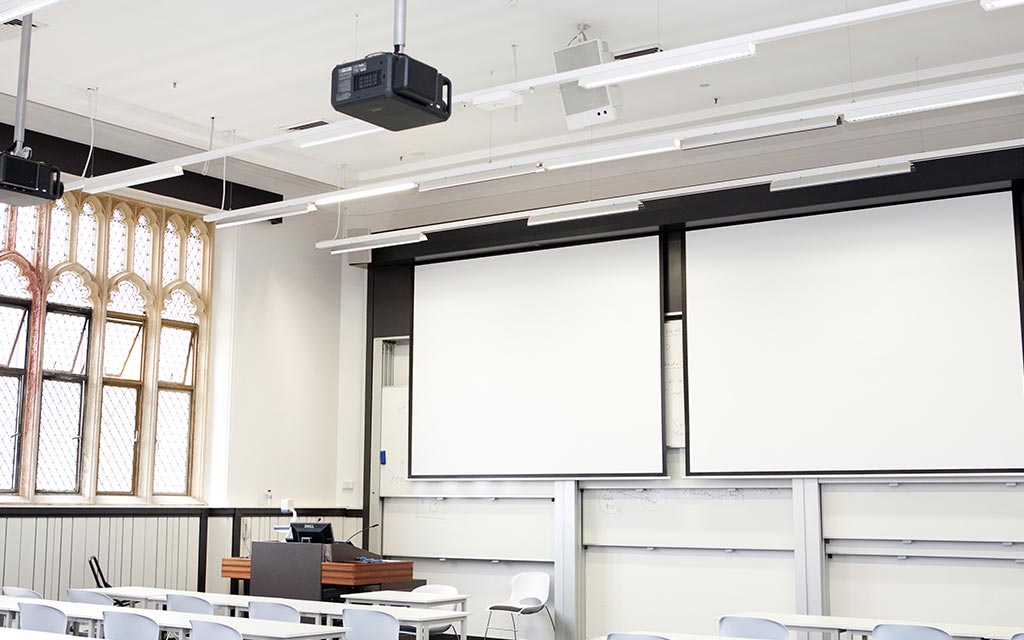

Suitable for Education use
Suitable for Home Entertainment

Suits ElectriCinema Screens

Sizes 72" - 220" diagonal

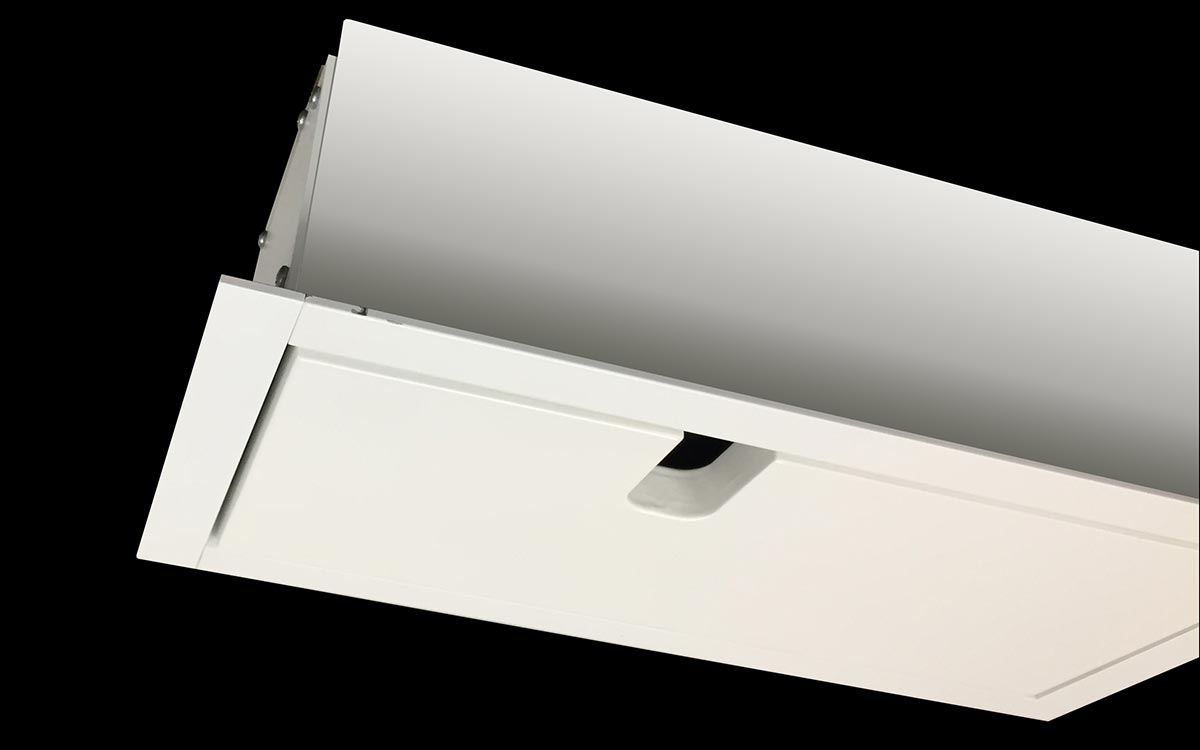

In ceiling enclosure manufactured from E Zero MDF to allow installation of projection screen above the ceiling line.

Benefits include:

  • Utilising E Zero MDF
  • Underside finished in low VOC 2pk white
  • Includes internal power junction for easy and complete AV integration

ElectriCinema Screen Box - Type A

Sizes 72" - 100" diagonal
  • Description

    In-Ceiling installation with power junction and bracket system
  • Sizes

    72” to 100” Diagonal
    Custom Sizes & Formats available upon request
    Also Side Tension Screens in Type B & C Style
  • Screen

    Suitable only for the ElectriCinema range of screens
  • Box

    EO Certified MDF construction with fully painted Low VOC 2 pack white underside & ceiling edge covers for easy install. Custom colours available
  • Brackets

    Utilises brackets supplied with ElectriCinema Screen
  • Installation

    Utilising ø5/16 Whitworth threaded holes with either brooker rod or eye bolts to suitable structure

ElectriCinema Screen Box - Type B

Sizes 110" - 150" diagonal
  • Description

    In-Ceiling installation with power junction and bracket system
  • Sizes

    110” to 150” Diagonal
    Custom Sizes & Formats available upon request

  • Screen

    Suitable only for the ElectriCinema range of screens
  • Box

    EO Certified MDF construction with fully painted Low VOC 2 pack white underside & ceiling edge covers for easy install. Custom colours available
  • Brackets

    Utilises brackets supplied with ElectriCinema Screen
  • Installation

    Utilising ø5/16 Whitworth threaded holes with either brooker rod or eye bolts to suitable structure

ElectriCinema Screen Box - Type C

Sizes 160" - 220" diagonal
  • Description

    In-Ceiling installation with power junction and bracket system
  • Sizes

    160” to 220” Diagonal
    Custom Sizes & Formats available upon request

  • Screen

    Suitable only for the ElectriCinema range of screens
  • Box

    EO Certified MDF construction with fully painted Low VOC 2 pack white underside & ceiling edge covers for easy install. Custom colours available
  • Brackets

    Utilises brackets supplied with ElectriCinema Screen
  • Installation

    Utilising ø5/16 Whitworth threaded holes with either brooker rod or eye bolts to suitable structure

  • Specifications

    ElectriCinema Screen Box - Type A

    Sizes 72" - 100" diagonal

    For New Zealand specific specifications, please download the relevant New Zealand Specifications PDF

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATBOX LENGTHBOX HEIGHTBOX DEPTHWEIGHT
    (mm)(mm)(mm)(mm)(kg)
    EB607219-A72''1100 x 1465Video 4:3196016019528
    EB608419-A84''1280 x 1705Video 4:3220016019530
    EB609619-A96''1465 x 1950Video 4:3244516019532
    EB610019-A100''1525 x 2035Video 4:3253016019533
    EB607229-A72''895 x 1595HDTV 16:9209016019528
    EB608429-A84''1045 x 1860HDTV 16:9235516019530
    EB609229-A92''1145 x 2035HDTV 16:9253016019533
    EB609629-A96''1195 x 2125HDTV 16:9262016019534
    EB610029-A100''1245 x 2215HDTV 16:9271016019535
    EB607269-A72''970 x 155016:10204516019528
    EB608469-A84''1130 x 181016:10230516019530
    EB609269-A92''1240 x 198016:10247516019532
    EB609669-A96''1295 x 207016:10256516019533
    EB610069-A100''1345 x 215516:10265016019535


    ElectriCinema Screen Box - Type B

    Sizes 110" - 150" diagonal

    For New Zealand specific specifications, please download the relevant New Zealand Specifications PDF

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATBOX LENGTHBOX HEIGHTBOX DEPTHWEIGHT
    (mm)(mm)(mm)(mm)(kg)
    EB611519-B115''1775 x 2340Video 4:3283520023544
    EB612019-B120"1830 x 2440Video 4:3293520023546
    EB613019-B130''1980 x 2640Video 4:3313520023549
    EB614019-BR140"2135 x 2845Video 4:3352020023552
    EB615019-BR150''2285 x 3050Video 4:3374020023556
    EB611029-B110''1370 x 2435HDTV 16:9293020023546
    EB611529-B115''1430 x 2545HDTV 16:9304020023547
    EB612029-B120''1495 x 2655HDTV 16:9315020023548
    EB613029-B130''1615 x 2880HDTV 16:9337520023551
    EB614029-BR140''1740 x 3100HDTV 16:9373020023557
    EB615029-BR150''1865 x 3320HDTV 16:9396020023562
    EB611069-B110''1480 x 237016:10286520023545
    EB612069-B120''1615 x 258516:10308020023548
    EB613069-B130''1750 x 280016:10329520023551
    EB614069-BR140''1885 x 301516:10366020023557
    EB615069-BR150''2020 x 323016:10389020023562


    ElectriCinema Screen Box - Type C

    Sizes 160" - 220" diagonal

    ITEM NOINCH DIAGONALIMAGE SIZEFORMATBOX LENGTHBOX HEIGHTBOX DEPTHWEIGHT
    (mm)(mm)(mm)(mm)(kg)
    EB616019-C160''2440 x 3250Video 4:3384023026576
    EB617019-C170"2590 x 3445Vidoe 4:3403523026580
    EB618019-C180"2745 x 3660Video 4:3425023026584
    EB619019-C190''2895 x 3860Video 4:3445023026588
    EB620019-C200''3050 x 4065Video 4:3465523026592
    EB621019-C210''3200 x 4265Video 4:3485523026595
    EB622019-C220''3355 x 4470Video 4:35060230265100
    EB623019-C230''3505 x 4675Video 4:35265230265103
    EB616029-C160"1995 x 3545HDTV 16:9413523026582
    EB617029-C170''2115 x 3765HDTV 16:9435523026585
    EB618029-C180''2240 x 3985HDTV 16:9457523026590
    EB619029-C190''2365 x 4205HDTV 16:9479523026595
    EB620029-C200''2490 x 4425HDTV 16:95015230265100
    EB621029-C210''2615 x 4650HDTV 16:95240230265105
    EB622029-C220"2740 x 4870HDTV 16:95460230265107
    EB616069-C160"2155 x 345016:10404023026580
    EB617069-C170''2290 x 366516:10425523026584
    EB618069-C180"2425 x 388016:10447023026588
    EB619069-C190''2560 x 409516:10468523026592
    EB620069-C200''2695 x 431016:10490023026596
    EB621069-C210''2830 x 452516:105115230265102
    EB622069-C220''2695 x 474016:105330230265105
