Comprehensive model line-up. Dozens of sizes. Why would you look anywhere else?
InterFit lifters are designed for ease of installation. Previously it was necessary to have access above the ceiling line to fit a projector lift; now the engineers at Screen Technics have done the hard work for you and provided the capacity to install the unit through its own hole.

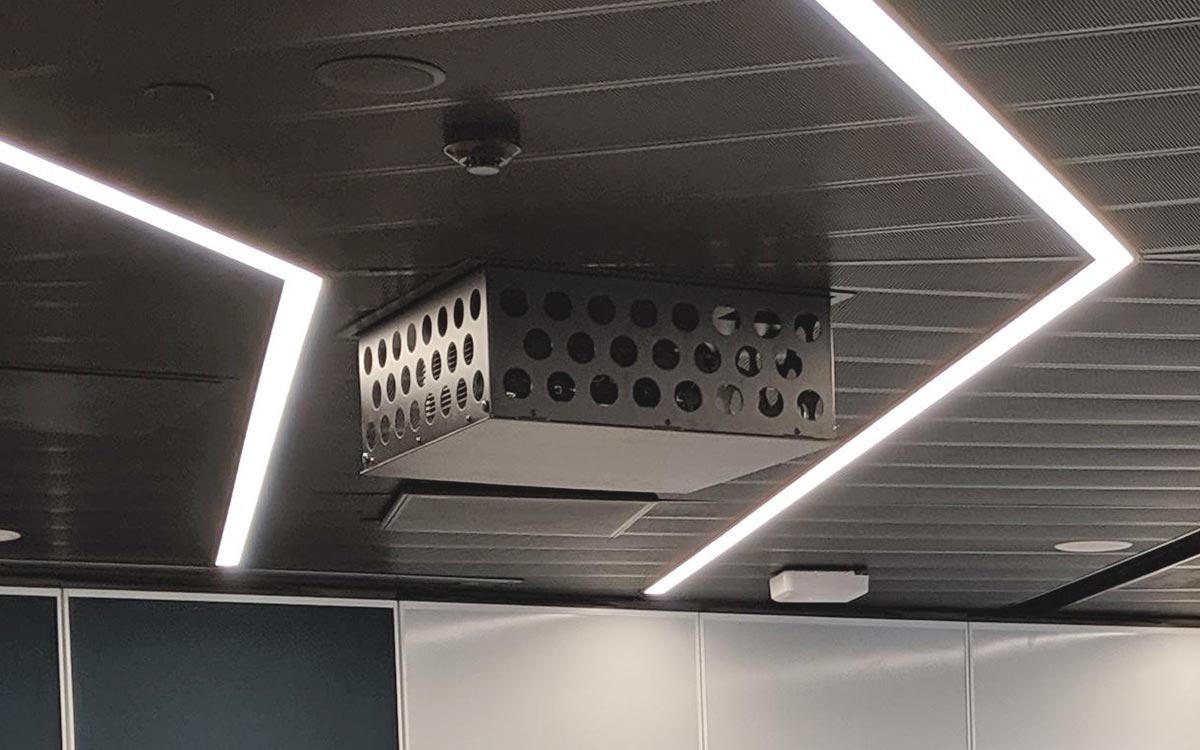

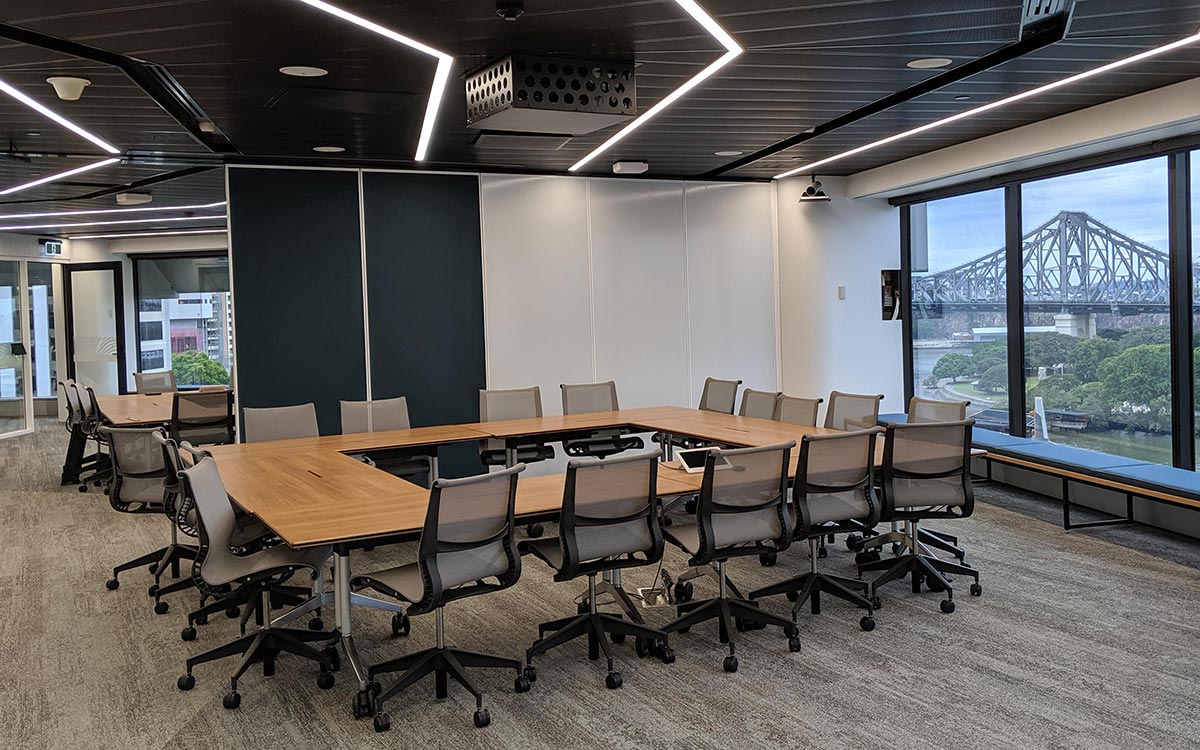

InterFit Projector Lifts
-
Description
In-ceiling motorised projector lifter -
Features
Full cable management system, Connect Control Module, ceiling edge strip, Removable shroud for cable access. All lifts over 600mm travel have a separate fall arrestor. Drops of 2000mm and above plus all F and H models have 2 fall arrestors. -
Control
IR Remote and Dry Contact Closure as standard, and the ability to link to other Connect controlled devices, such as ElectriCinema Projection Screens. FVI and HTI lifters have a encoder providing 3 adjustable stop positions (store, show and service) -
Construction
Powder coated aluminium frame & mechanism -
Lifters
600mm and below travel will stop at full travel by a hard stop. If this could lead to personal injury please consider adding a fall arrestor to the lift. Cost and height of unit will increase.
The InterFit Projector Lift is without doubt the most comprehensive model line-up for any projector lift in the AV world.
Lightweight, with a structurally rigid design, form follows function here to the extreme, leaving no space unused and no feature undeserving of its place in the design.
Benefits include:
- Full cable management system
- Comprehensive model range
- Connect control module
- Ceiling edge strip for single trade install
- Removable shroud for cable access
- Fall arrestors fitted to all lifts over 600mm travel
Specifications
InterFit Projector Lifts
| Lifter Dimensions | Max Projector Dimension inc Cables & Lens |
|---|
| ITEM NO | TRAVEL | WIDTH | DEPTH | HEIGHT | WIDTH | DEPTH | HEIGHT | MAX LOAD (KG) | WEIGHT |
| 141020AW | 200 | 426 | 426 | 225 | 384 | 384 | 140 | 20.0 | 15.0 |
| 141020AZ | 200 | 426 | 426 | 205 | 384 | 384 | 120 | 20.0 | 15.0 |
| 141024BW | 250 | 460 | 460 | 225 | 418 | 418 | 140 | 20.0 | 18.0 |
| 141024BX | 250 | 460 | 460 | 255 | 418 | 418 | 175 | 20.0 | 18.0 |
| 143030CW | 280 | 550 | 550 | 245 | 508 | 508 | 140 | 25.0 | 26.0 |
| 143030CX | 280 | 550 | 550 | 285 | 508 | 508 | 175 | 25.0 | 26.0 |
| 143030DV | 320 | 650 | 650 | 360 | 608 | 608 | 250 | 35.0 | 34.0 |
| 143030DW | 320 | 650 | 650 | 240 | 608 | 608 | 140 | 35.0 | 32.0 |
| 143030DX | 300 | 650 | 650 | 285 | 608 | 608 | 175 | 35.0 | 33.0 |
| 143030DY | 320 | 650 | 650 | 330 | 608 | 608 | 220 | 35.0 | 34.0 |
| 143030FV | 300 | 800 | 800 | 510 | 750 | 750 | 250 | 50.0 | 45.0 |
| 143060CW | 600 | 550 | 550 | 245 | 508 | 508 | 140 | 25.0 | 27.0 |
| 143060CX | 600 | 550 | 550 | 285 | 508 | 508 | 175 | 25.0 | 28.0 |
| 143060DV | 695 | 650 | 650 | 360 | 608 | 608 | 250 | 35.0 | 36.0 |
| 143060DW | 700 | 650 | 650 | 245 | 608 | 608 | 140 | 35.0 | 33.0 |
| 143060DX | 650 | 650 | 650 | 290 | 608 | 608 | 175 | 35.0 | 34.0 |
| 143060DY | 690 | 650 | 650 | 330 | 608 | 608 | 220 | 35.0 | 36.0 |
| 143060FV | 600 | 800 | 800 | 510 | 750 | 750 | 250 | 50.0 | 46.0 |
| 143090CX | 900 | 550 | 550 | 405 | 508 | 508 | 175 | 25.0 | 29.0 |
| 143090DW | 900 | 650 | 650 | 390 | 608 | 608 | 140 | 35.0 | 35.0 |
| 143090DX | 1000 | 650 | 650 | 390 | 608 | 608 | 175 | 35.0 | 36.0 |
| 143090DY | 1000 | 650 | 650 | 440 | 608 | 608 | 220 | 35.0 | 42.0 |
| 143090FV | 900 | 800 | 800 | 540 | 750 | 750 | 250 | 50.0 | 50.0 |
| 143120DY | 1300 | 650 | 650 | 440 | 608 | 608 | 220 | 35.0 | 42.0 |
| 143120FV | 1200 | 800 | 800 | 540 | 750 | 750 | 250 | 50.0 | 50.0 |
| 143170DY | 1700 | 650 | 650 | 470 | 608 | 608 | 220 | 35.0 | 44.0 |
| 143200DY | 2300 | 650 | 650 | 700 | 608 | 608 | 220 | 35.0 | 46.0 |
| 143240DY | 2600 | 650 | 650 | 700 | 608 | 608 | 220 | 35.0 | 46.0 |
| 143360DY | 3600 | 650 | 650 | 860 | 608 | 608 | 220 | 35.0 | 50.0 |
| 143240FV | 2400 | 800 | 800 | 755 | 750 | 750 | 250 | 50.0 | 102.0 |
| 143300FV | 3000 | 800 | 800 | 755 | 750 | 750 | 250 | 50.0 | 102.0 |
| 143360FV | 3600 | 800 | 800 | 755 | 750 | 750 | 250 | 50.0 | 105.0 |
| 143400FV | 4000 | 800 | 800 | 755 | 750 | 750 | 250 | 50.0 | 105.0 |
| 143120FVI | 1200 | 800 | 800 | 540 | 750 | 750 | 250 | 50.0 | 95.0 |
| 143240FVI | 2400 | 800 | 800 | 755 | 750 | 750 | 250 | 50.0 | 102.0 |
| 143300FVI | 3000 | 800 | 800 | 755 | 750 | 750 | 250 | 50.0 | 102.0 |
| 143360FVI | 3600 | 800 | 800 | 825 | 750 | 750 | 250 | 50.0 | 105.0 |
| 143400FVI | 4000 | 800 | 800 | 825 | 750 | 750 | 250 | 50.0 | 105.0 |
| 143450HTI | 4500 | 950 | 950 | 900 | 900 | 900 | 350 | 50.0 | 120.0 |
| 143500HTI | 5000 | 950 | 950 | 900 | 900 | 900 | 350 | 50.0 | 124.0 |
| 143550HTI | 5500 | 950 | 950 | 900 | 900 | 900 | 350 | 50.0 | 128.0 |
| 143600HTI | 6000 | 950 | 950 | 900 | 900 | 900 | 350 | 50.0 | 132.0 |
