MasterFit Screen

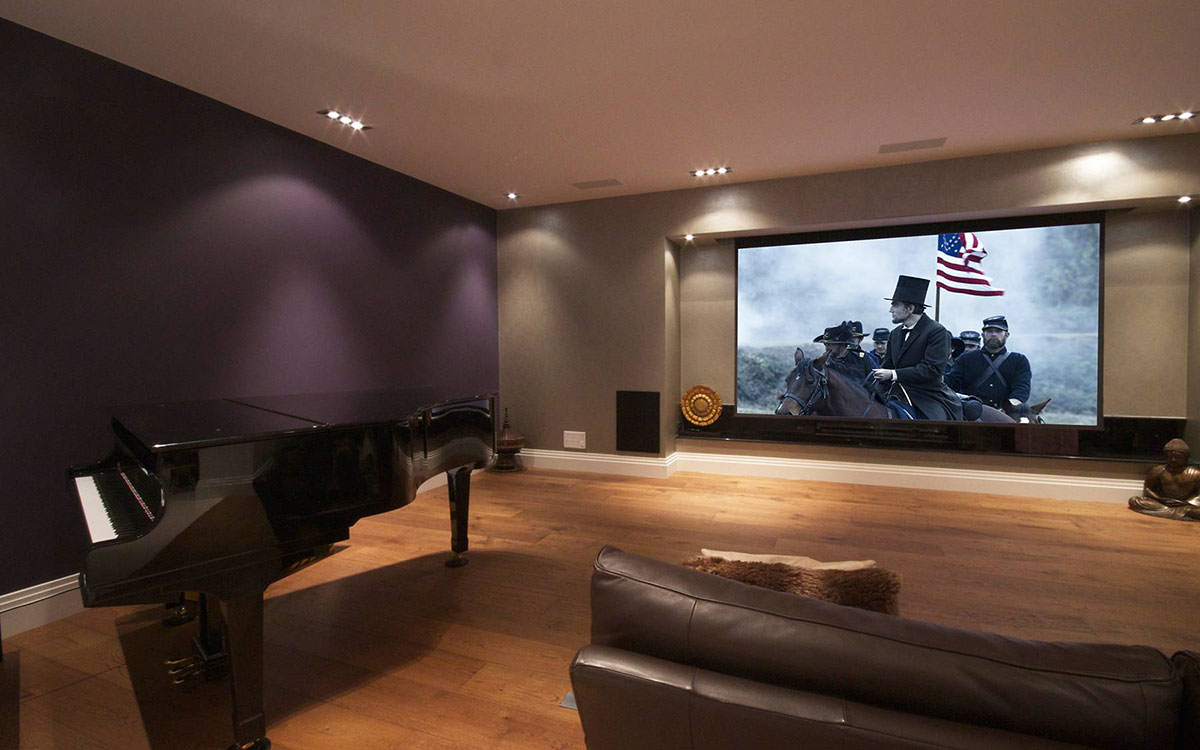

Pic 1

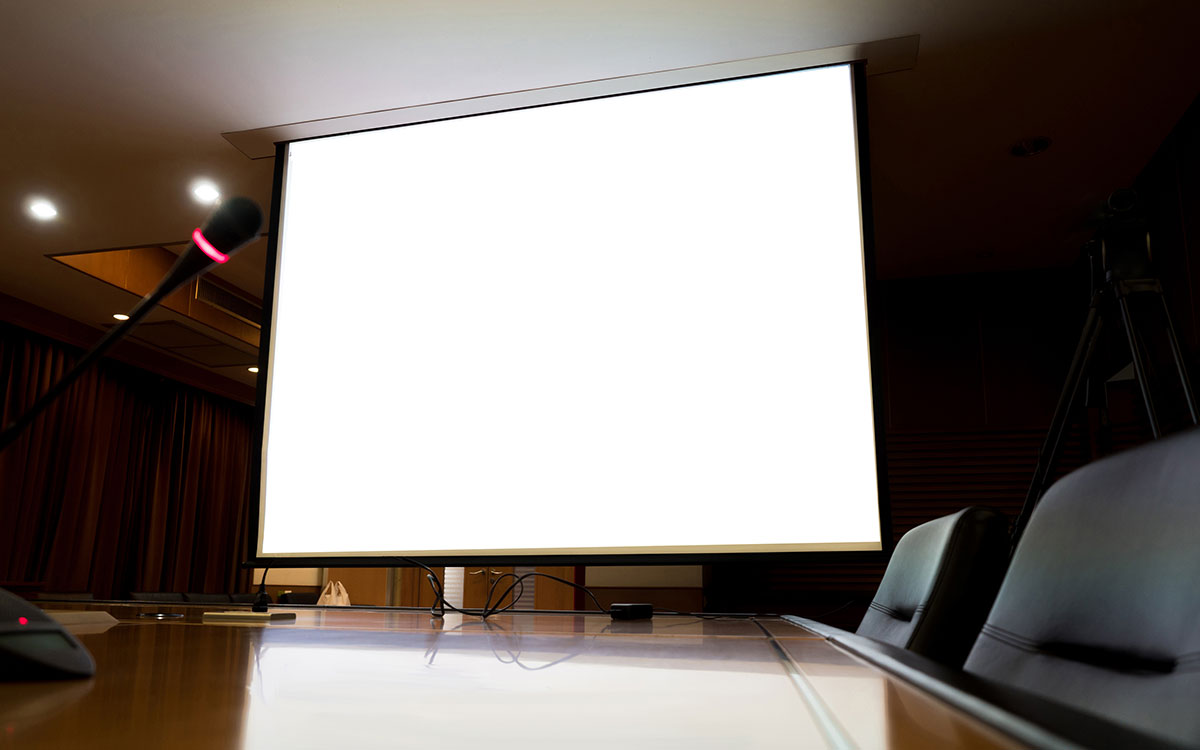

Pic 2

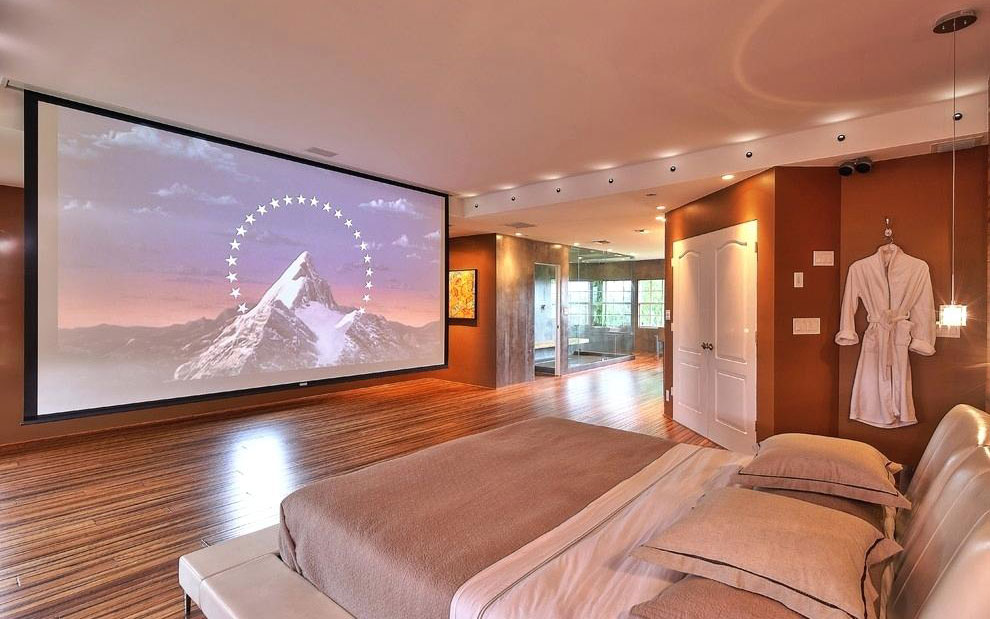

Pic 3

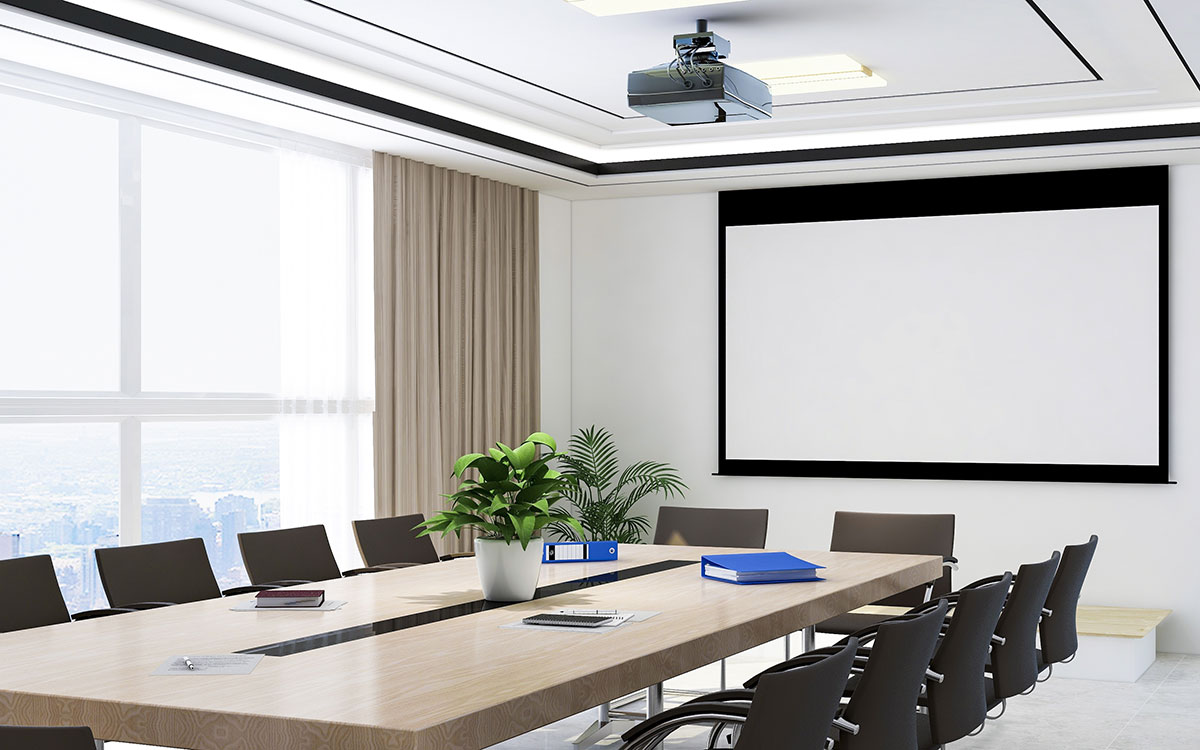

Pic 4

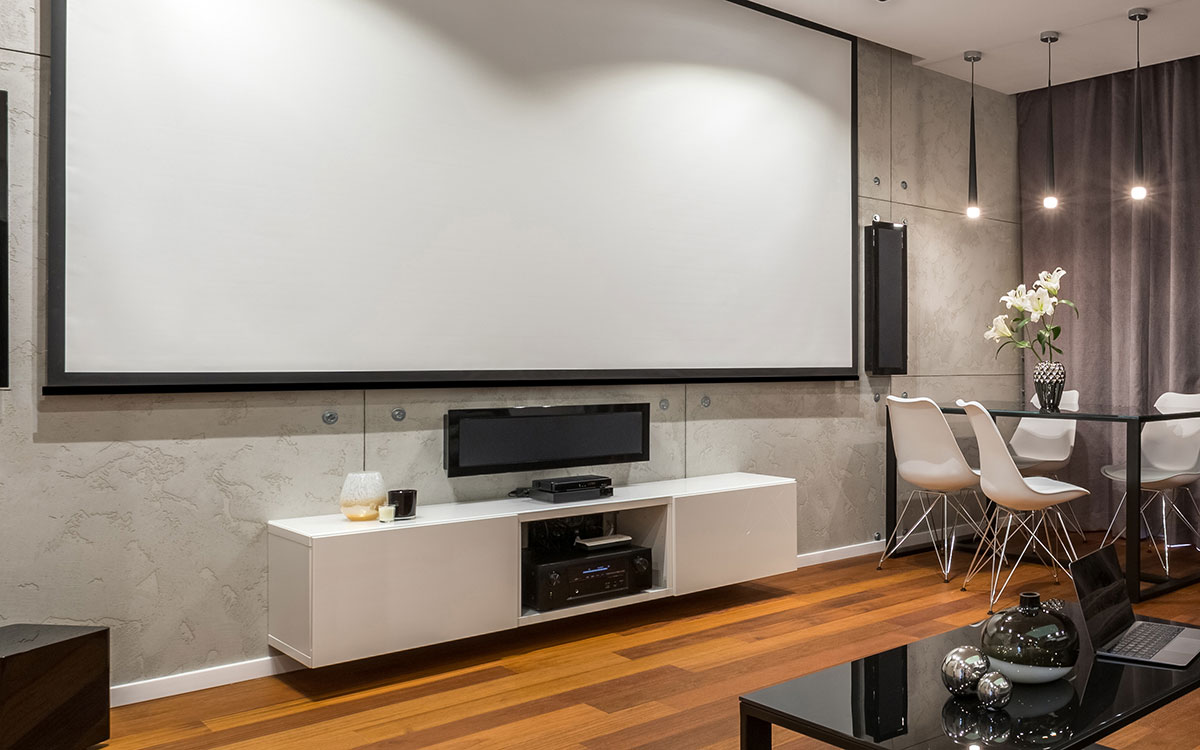

Pic 5

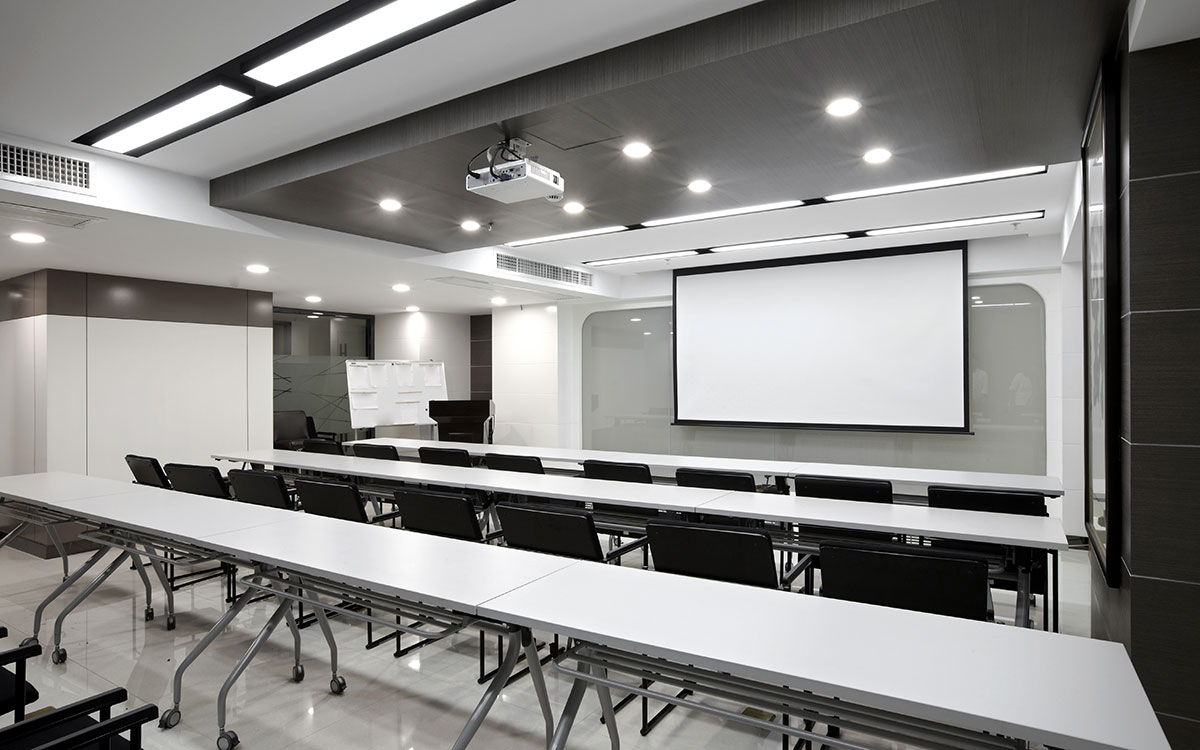

Pic 6

Market Segments

Convenient one-stop installation

Sizes 72" - 220" diagonal

An integrated in-ceiling screen solution designed for installation from within or below the ceiling. Uses a custom designed aluminium box for a lightweight solution, yet still provides structural integrity.

Benefits include:

Fully integrated with IR
12V trigger
Contact closure
Option to upgrade to Connect IP control

Where to Buy

Product Features

MasterFit - A, B & C

Sizes 72" - 115" diagonal

An integrated in ceiling screen solution designed for a one-stop installation from within the ceiling space
Utilises a custom designed aluminium box for lightweight solution but still providing structural integrity
Connect Infra red and dry contact control as standard - upgradeable to Connect IP control
Custom sizes available

MasterFit - A (+), B (+) & C (+)

Sizes 72" - 115" diagonal

An integrated in ceiling screen solution designed for a one-stop installation from below the ceiling line
Utilises a custom designed aluminium box for lightweight solution but still providing structural integrity
Connect Infra red and dry contact control as standard - upgradeable to Connect IP control
Boxes are supplied with 4 x M8 eyebolts. Threaded rod is not supplied

Specifications

MasterFit - A

Sizes 72" - 115" diagonal

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF08429-A	84''	1046 x 1860	HDTV 16:9	2260	127	153	32.0
MF09229-A	92''	1146 x 2037	HDTV 16:9	2437	127	153	34.0
MF09629-A	96''	1195 x 2125	HDTV 16:9	2525	127	153	35
MF10029-A	100''	1245 x 2214	HDTV 16:9	2614	127	153	36
MF11029-A	110"	1370 x 2435	HDTV 16:9	2835	127	153	38
MF11529-A	115"	1432 x 2546	HDTV 16:9	2946	127	153	39

MF08469-A	84''	1131 x 1809	16:10	2209	127	153	31
MF09269-A	92''	1239 x 1982	16:10	2382	127	153	33
MF09669-A	96''	1292 x 2068	16:10	2468	127	153	34
MF10069-A	100''	1346 x 2154	16:10	2554	127	153	35
MF11069-A	110"	1481 x 2369	16:10	2769	127	153	38
MF11569-A	115"	1548 x 2477	16:10	2877	127	153	39

MasterFit - A - Hi-Contrast Grey

Sizes 72" - 115" diagonal

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF08428-A	84''	1046 x 1860	HDTV 16:9	2260	127	153	32.0
MF09228-A	92''	1146 x 2037	HDTV 16:9	2437	127	153	34.0
MF09628-A	96''	1195 x 2125	HDTV 16:9	2525	127	153	35
MF10028-A	100''	1245 x 2214	HDTV 16:9	2614	127	153	36
MF11028-A	110"	1370 x 2435	HDTV 16:9	2835	127	153	38
MF11528-A	115"	1432 x 2546	HDTV 16:9	2946	127	153	39

MF08468-A	84''	1131 x 1809	16:10	2209	127	153	31
MF09268-A	92''	1239 x 1982	16:10	2382	127	153	33
MF09668-A	96''	1292 x 2068	16:10	2468	127	153	34
MF10068-A	100''	1346 x 2154	16:10	2554	127	153	35
MF11068-A	110"	1481 x 2369	16:10	2769	127	153	38
MF11568-A	115"	1548 x 2477	16:10	2877	127	153	39

MasterFit - A (+)

Sizes 72" - 115" diagonal

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF08429-A+	84''	1046 x 1860	HDTV 16:9	2420	127	153	33
MF09229-A+	92''	1146 x 2037	HDTV 16:9	2597	127	153	35
MF09629-A+	96''	1195 x 2125	HDTV 16:9	2685	127	153	36
MF10029-A+	100''	1245 x 2214	HDTV 16:9	2774	127	153	37
MF11029-A+	110"	1370 x 2435	HDTV 16:9	2995	127	153	39
MF11529-A+	115"	1432 x 2546	HDTV 16:9	3106	127	153	40

MF08469-A+	84''	1131 x 1809	16:10	2369	127	153	32
MF09269-A+	92''	1239 x 1982	16:10	2542	127	153	34
MF09669-A+	96''	1292 x 2068	16:10	2628	127	153	35
MF10069-A+	100''	1346 x 2154	16:10	2714	127	153	36
MF11069-A+	110"	1481 x 2369	16:10	2929	127	153	39
MF11569-A+	115"	1548 x 2477	16:10	3037	127	153	40

MasterFit - A (+) - Hi-Contrast Grey

Sizes 72" - 115" diagonal

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF08428-A+	84''	1046 x 1860	HDTV 16:9	2420	127	153	33
MF09228-A+	92''	1146 x 2037	HDTV 16:9	2597	127	153	35
MF09628-A+	96''	1195 x 2125	HDTV 16:9	2685	127	153	36
MF10028-A+	100''	1245 x 2214	HDTV 16:9	2774	127	153	37
MF11028-A+	110"	1370 x 2435	HDTV 16:9	2995	127	153	39
MF11528-A+	115"	1432 x 2546	HDTV 16:9	3106	127	153	40

MF08468-A+	84''	1131 x 1809	16:10	2369	127	153	32
MF09268-A+	92''	1239 x 1982	16:10	2542	127	153	34
MF09668-A+	96''	1292 x 2068	16:10	2628	127	153	35
MF10068-A+	100''	1346 x 2154	16:10	2714	127	153	36
MF11068-A+	110"	1481 x 2369	16:10	2929	127	153	39
MF11568-A+	115"	1548 x 2477	16:10	3037	127	153	40

MasterFit - B

Sizes 120" - 150" diagonal

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF12029-B	120''	1494 x 2657	HDTV 16:9	3057	127	170	43.0
MF13029-B	130''	1619 x 2878	HDTV 16:9	3278	127	170	45.0
MF14029-B	140''	1743 x 3099	HDTV 16:9	3499	127	170	48.0
MF15029-B	150''	1868 x 3321	HDTV 16:9	3721	127	170	50.0

MF12069-B	120''	1615 x 2585	16:10	2985	127	170	42.0
MF13069-B	130''	1750 x 2800	16:10	3200	127	170	45.0
MF14069-B	140''	1885 x 3015	16:10	3415	127	170	47
MF15069-B	150''	2019 x 3231	16:10	3631	127	170	50

MasterFit - B - Hi-Contrast Grey

Sizes 120" - 150" diagonal

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF12028-B	120''	1494 x 2657	HDTV 16:9	3057	127	170	43.0
MF13028-B	130''	1619 x 2878	HDTV 16:9	3278	127	170	45.0

MF12068-B	120''	1615 x 2585	16:10	2985	127	170	42.0
MF13068-B	130''	1750 x 2800	16:10	3200	127	170	45.0

MasterFit - B (+)

Sizes 120" - 150" diagonal

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF12029-B+	120''	1494 x 2657	HDTV 16:9	3217	127	170	44
MF13029-B+	130''	1619 x 2878	HDTV 16:9	3438	127	170	46
MF14029-B+	140''	1743 x 3099	HDTV 16:9	3659	127	170	48
MF15029-B+	150''	1868 x 3321	HDTV 16:9	3881	127	170	51

MF12069-B+	120''	1615 x 2585	16:10	3145	127	170	43
MF13069-B+	130''	1750 x 2800	16:10	3360	127	170	46
MF14069-B+	140''	1885 x 3015	16:10	3575	127	170	48
MF15069-B+	150''	2019 x 3231	16:10	3791	127	170	50

MasterFit - B (+) - Hi-Contrast Grey

Sizes 120" - 150" diagonal

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF12028-B+	120''	1494 x 2657	HDTV 16:9	3217	127	170	44
MF13028-B+	130''	1619 x 2878	HDTV 16:9	3438	127	170	46

MF12068-B+	120''	1615 x 2585	16:10	3145	127	170	43
MF13068-B+	130''	1750 x 2800	16:10	3360	127	170	46

MasterFit - C

Sizes 160" - 220" diagonal in two styles

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF16029-C	160"	1992 x 3542	HDTV 16:9	3942	175	200	69
MF17029-C	170''	2117 x 3763	HDTV 16:9	4163	175	200	73
MF18029-C	180''	2241 x 3985	HDTV 16:9	4385	175	200	76
MF19029-C	190''	2366 x 4206	HDTV 16:9	4606	175	200	80
MF20029-C	200''	2491 x 4428	HDTV 16:9	4828	175	200	83
MF21029-C	210''	2615 x 4649	HDTV 16:9	5049	175	200	87
MF22029-C	220"	2740 x 4870	HDTV 16:9	5270	175	200	91

MF16069-C	160"	2154 x 3446	16:10	3846	175	200	68
MF17069-C	170''	2289 x 3662	16:10	4062	175	200	72
MF18069-C	180"	2423 x 3877	16:10	4277	175	200	75
MF19069-C	190''	2558 x 4092	16:10	4492	175	200	79
MF20069-C	200''	2692 x 4308	16:10	4708	175	200	82
MF21069-C	210''	2827 x 4523	16:10	4923	175	200	86
MF22069-C	220''	2962 x 4739	16:10	5139	175	200	90

MasterFit - C (+)

Sizes 160" - 220" diagonal in two styles

ITEM NO	INCH DIA	IMAGE SIZE	FORMAT	BOX LENGTH	BOX HEIGHT	BOX DEPTH	WEIGHT
		(mm)		(mm)	(mm)	(mm)	(kg)

MF16029-C+	160"	1992 x 3542	HDTV 16:9	4102	175	200	71
MF17029-C+	170''	2117 x 3763	HDTV 16:9	4323	175	200	75
MF18029-C+	180''	2241 x 3985	HDTV 16:9	4545	175	200	78
MF19029-C+	190''	2366 x 4206	HDTV 16:9	4766	175	200	82
MF20029-C+	200''	2491 x 4428	HDTV 16:9	4988	175	200	85
MF21029-C+	210''	2615 x 4649	HDTV 16:9	5209	175	200	89
MF21529-C+	215"	2740 x 4870	HDTV 16:9	5430	175	200	93

MF16069-C+	160"	2154 x 3446	16:10	4006	175	200	70
MF17069-C+	170''	2289 x 3662	16:10	4222	175	200	74
MF18069-C+	180"	2423 x 3877	16:10	4437	175	200	77
MF19069-C+	190''	2558 x 4092	16:10	4652	175	200	81
MF20069-C+	200''	2692 x 4308	16:10	4868	175	200	84
MF21069-C+	210''	2827 x 4523	16:10	5083	175	200	88
MF22069-C+	220''	2962 x 4739	16:10	5299	175	200	92

Downloads

Specifications - A

PDF (1.7MB)

DOWNLOAD

Specifications - A (+)

PDF (1.0MB)

DOWNLOAD

Specifications - B

PDF (1.2MB)

DOWNLOAD

Specifications - B (+)

PDF (1.4MB)

DOWNLOAD

Specifications - C

PDF (1.2MB)

DOWNLOAD

Specifications - C (+)

PDF (2.1MB)

DOWNLOAD

Install Instructions - MasterFit IP

PDF (2.2MB)

DOWNLOAD
